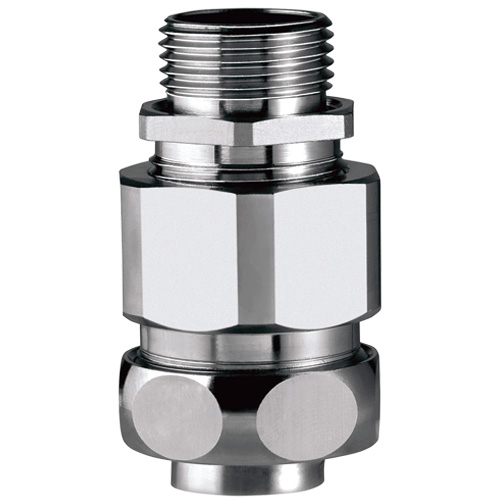

The Flexa USZ-M 15016327140 (Old Part Number 5016.327.140) is described as a metal connector, safety-type, straight, metric M40 x 1.
5 outer thread, strain relief, including ferrule [brass], sealing [TPE] and O-ring [NBR]. Great for applications in EX-area.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$279.53 | US$279.53 |
| 3 | US$251.58 | US$754.73 |
| 5 | US$259.53 | US$1,297.65 |
| 10 | US$209.65 | US$2,096.48 |
| 20+ | US$195.67 | US$3,913.42+ |
Unit Cost : US$
Extended Cost : US$279.53
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USZ-M |
| Part Number | 15016327140 |
| Part Number (Old) | 5016.327.140 |
| Fits Conduit Types | FLEXAgraff-AS, FLEXAgraff-VA, SPR-AS, SPR-VA |
| Thread Type | Metric |
| Thread Size | M40 x 1. 5 |
| Thread Length C (mm) | 13. 0 |
| Body Length D (mm) | 68. 0 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 36. 0 |
| ΦI Inside Diameter (mm) | 27. 5 |
| ΦB Max Outer Diameter (mm) | 48. 0 |
| Weight (kg|100) | 23.870 |
| Package Size | 5 pcs |
| IP Rating | IP 40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 100 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration- and tensionproof
Applications
- machine and plant constructions
- automotive
- railway industry
- shipbuilding
- automation
- electrical installations
Certifications
