Flexa USDR-M 5013.328.025 / 15013328025

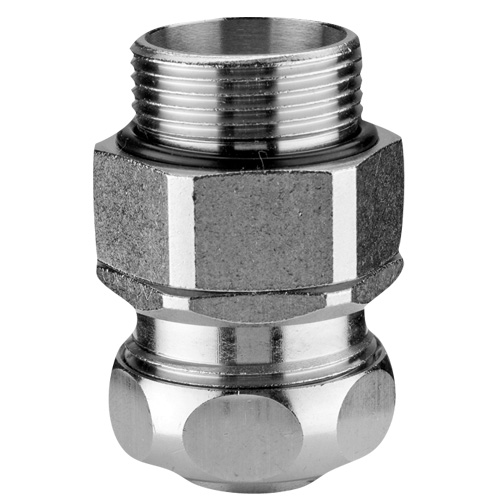

The Flexa USDR-M 15013328025 (Old Part Number 5013.328.025) is described as a metal connector, safety-type, straight, turnable metric M25 x 1.
5 outer thread, including ferrule [brass], sealing [TPE] and O-ring [NBR].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$56.18 | US$56.18 |
| 5 | US$50.56 | US$252.81 |
| 10 | US$44.94 | US$449.44 |
| 20 | US$42.14 | US$842.70 |
| 50+ | US$39.33 | US$1,966.30+ |
Unit Cost : US$
Extended Cost : US$56.18
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USDR-M |
| Part Number | 15013328025 |
| Part Number (Old) | 5013.328.025 |
| Fits Conduit Types | FLEXAgraff-PU-AS, FLEXAgraff-PU-F, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC-AS |
| Thread Type | Metric |
| Thread Size | M25 x 1. 5 |
| Thread Length C (mm) | 11. 0 |
| Body Length D (mm) | 31. 0 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 21. 0 |
| ΦI Inside Diameter (mm) | 15. 5 |
| ΦB Max Outer Diameter (mm) | 31. 0 |
| Weight (kg|100) | 9.500 |
| Package Size | 10 pcs |
| IP Rating | IP 65 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration- and tensionproof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
Certifications
