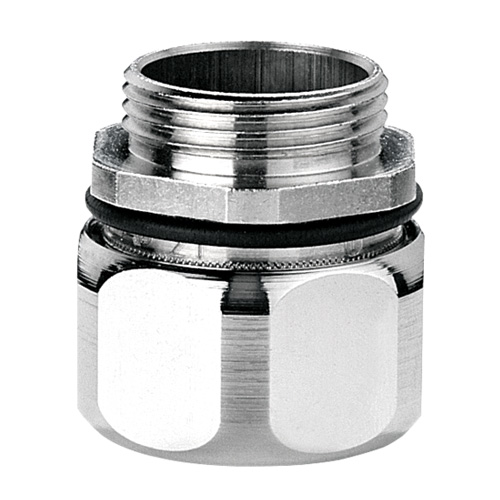

5015.128.048 / 15015128048 USD-P PG48 Flexa straight metal conduit connector, EMC, EMI, RFI protection ready
The Flexa USD-P 15015128048 (Old Part Number 5015.128.048) is an EMC compliant nickel-plated brass straight conduit connector with PG48 outer thread.
The USD-P includes an internal brass ferrule and an outer “OR-P” sealing O-Ring made of nitrile rubber.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$233.97 | US$233.97 |
| 2+ | US$187.18 | US$374.35+ |
Unit Cost : US$
Extended Cost : US$233.97
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USD-P |
| Part Number | 15015128048 |
| Part Number (Old) | 5015.128.048 |
| Fits Conduit Types | FLEXAgraff-CU-PU |
| Thread Type | PG |
| Thread Size | PG48 |
| Thread Length C (mm) | 10 |
| Body Length D (mm) | 48 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 56 |
| ΦI Inside Diameter (mm) | 48 |
| ΦB Max Outer Diameter (mm) | 70 |
| Weight (kg|100) | 21 |
| Package Size | 2 pcs |
| IP Rating | IP 67 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
- liquid tight
- EMC connector due to longer pressure nut
Applications
- machine and plant constructions
- automotive
- automation
- shipbuilding
- electrical installations
- EMC application
Certifications
