Flexa USD-M 5015.327.012 / 15015327012

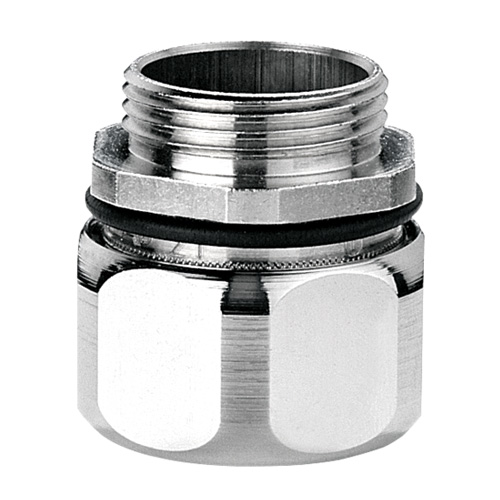

The Flexa USD-M 15015327012 (Old Part Number 5015.327.012) is described as an EMC metal connector, straight, metric M12 x 1.5 outer thread, including ferrule [brass] and O-Ring [NBR].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$40.21 | US$40.21 |
| 5 | US$36.19 | US$180.95 |
| 10 | US$32.17 | US$321.68 |
| 20 | US$30.16 | US$603.15 |
| 50+ | US$28.15 | US$1,407.35+ |
Unit Cost : US$
Extended Cost : US$40.21
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USD-M |
| Part Number | 15015327012 |
| Part Number (Old) | 5015.327.012 |
| Fits Conduit Types | FLEXAgraff-CU-PU |
| Thread Type | Metric |
| Thread Size | M12 x 1.5 |
| Thread Length C (mm) | 10 |
| Body Length D (mm) | 33 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 14 |
| ΦI Inside Diameter (mm) | 9 |
| ΦB Max Outer Diameter (mm) | 23 |
| Weight (kg|100) | 2.8 |
| Package Size | 10 pcs |
| IP Rating | IP 67 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
- liquid tight
- EMC connector due to longer pressure nut
Applications
- machine and plant constructions
- automotive
- automation
- shipbuilding
- electrical installations
- EMC application
Certifications
