Mfr. Part # 15010330040 Categories , , ,

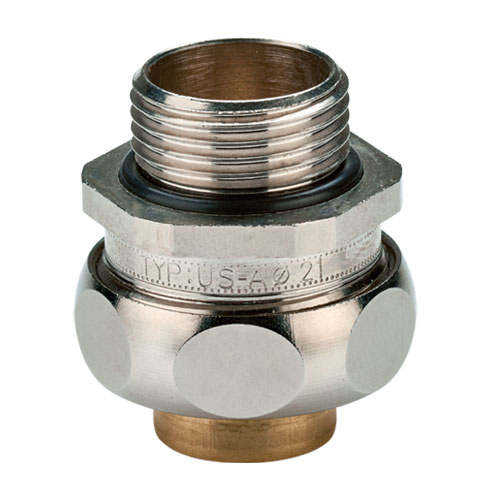

The Flexa US-M 15010330040 (Old Part Number 5010.330.040) is a straight nickel-plated brass conduit connector with metric M40 x 1.5 mm outer thread.

This rugged, high-quality, machined nickel-plated brass conduit fitting features:

  • pre-mounted outer “O” sealing ring made of NBR Perbunan Nitrile rubber
  • brass thrust collar
  • brass or plastic ferrule
  • highly secure compression style conduit connection
  • very good vibration and tension tolerance

Use with the following Flexa liquidtight flexible conduits:

  • AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K

Also available in a small 2 piece pack: Check here for US-M small pack part # 5010.830.040

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$163.33 US$163.33
5 US$155.16 US$775.82
10 US$147.00 US$1,469.97
15 US$138.83 US$2,082.46
20 US$130.66 US$2,613.28
40 US$122.50 US$4,899.90
100+ US$114.33 US$11,433.10+
Unit Cost : US$
Extended Cost : US$163.33
Add to Quote

Specifications

Product Type

Metal Body Fitting

Brand

Flexa

Family

US-M

Part Number

15010330040

Part Number (Old)

5010.330.040

Fits Conduit Types

AIRflex-GRS, AIRflex-K, AIRflex-KUW-PU-AS, AIRflex-KUW-PVC-AS

Thread Type

Metric

Thread Size

M40 x 1.5

Thread Length C (mm)

13

Body Length D (mm)

43

Material

Ni-Brass

OD Outside Diameter (mm)

45

ΦI Inside Diameter (mm)

35

ΦB Max Outer Diameter (mm)

57

Weight (kg|100)

15

Package Size

20 pcs

IP Rating

IP 54

Low Temperature Rating (°C)

-40

High Temperature Rating (°C)

125

Data Sheet

Properties

  • highly watertight and dustproof
  • friction-type locking of conduit and screw connector
  • correct grounding
  • covering of the conduit ends
  • vibration and tension proof

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • automation
  • shipbuilding
  • electrical installations
