Mfr. Part #
15010330025
Categories IBIS FLEXA US Fitting 25 Pack, Metal Body Fittings, Straight, US-M

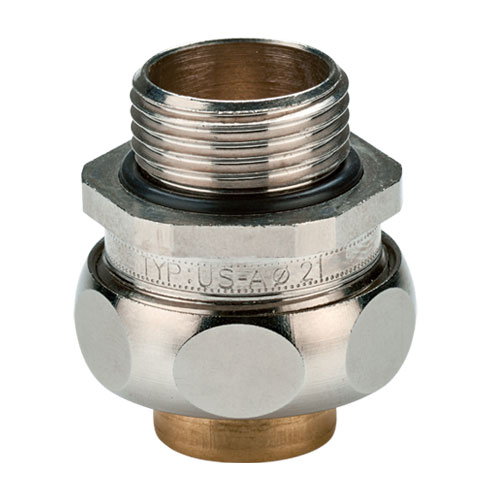

The Flexa US-M 15010330025 (Old Part Number 5010.330.025) is a straight nickel-plated brass conduit connector with metric M25 x 1.5 mm outer thread.
This rugged, high-quality, machined nickel-plated brass conduit fitting features:
- pre-mounted outer “O” sealing ring made of NBR Perbunan Nitrile rubber
- brass thrust collar
- brass or plastic ferrule
- highly secure compression style conduit connection
- very good vibration and tension tolerance
Use with the following Flexa liquidtight flexible conduits:
- AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K
Also available in a small 10 piece pack: Check here for US-M small pack part # 5010.830.025
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$55.05 | US$55.05 |
5 | US$53.40 | US$266.99 |
10 | US$52.30 | US$522.98 |
15 | US$49.55 | US$743.18 |
20 | US$46.79 | US$935.85 |
25 | US$44.04 | US$1,101.00 |
50 | US$41.29 | US$2,064.38 |
100+ | US$38.54 | US$3,853.50+ |
Unit Cost : US$
Extended Cost : US$55.05
Specifications
Product Type | Metal Body Fitting |
---|---|
Brand | Flexa |
Family | US-M |
Part Number | 15010330025 |
Part Number (Old) | 5010.330.025 |
Fits Conduit Types | AIRflex-GRS, AIRflex-K, AIRflex-KUW-PU-AS, AIRflex-KUW-PVC-AS |
Thread Type | Metric |
Thread Size | M25 x 1.5 |
Thread Length C (mm) | 11 |
Body Length D (mm) | 41 |
Material | Ni-Brass |
OD Outside Diameter (mm) | 27 |
ΦI Inside Diameter (mm) | 19.5 |
ΦB Max Outer Diameter (mm) | 39 |
Weight (kg|100) | 7.5 |
Package Size | 25 pcs |
IP Rating | IP 54 |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
