5010.330.016 / 15010330016 Flexa US-M M16 x 1.5 mm nickel-plated brass straight connector for 17.0 mm OD AIRflex® conduits

Mfr. Part # 15010330016 Categories , , ,

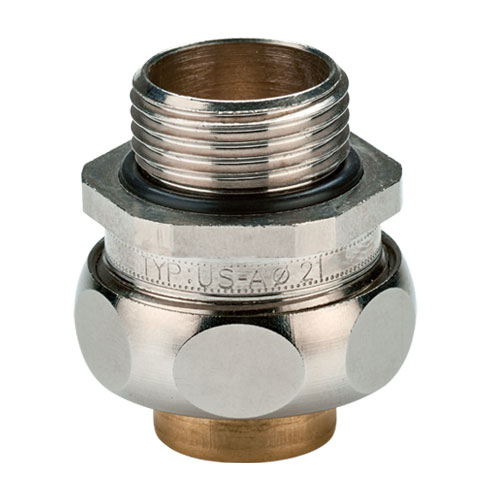

The Flexa US-M 15010330016 (Old Part Number 5010.330.016) is a straight nickel-plated brass conduit connector with metric M16 x 1.5 mm outer thread.

This rugged, high-quality, machined nickel-plated brass conduit fitting features:

  • pre-mounted outer “O” sealing ring made of NBR Perbunan Nitrile rubber
  • brass thrust collar
  • brass or plastic ferrule
  • highly secure compression style conduit connection
  • very good vibration and tension tolerance

Use with the following Flexa liquidtight flexible conduits:

  • AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K

Also available in a small 10 piece pack: Check here for US-M small pack part # 5010.830.016

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$28.62 US$28.62
5 US$27.76 US$138.81
10 US$27.19 US$271.89
15 US$25.76 US$386.37
25 US$24.33 US$608.18
50 US$22.90 US$1,144.80
100 US$21.47 US$2,146.50
250+ US$20.03 US$5,008.50+
Unit Cost : US$
Extended Cost : US$28.62
Add to Quote

Specifications

Product Type

Metal Body Fitting

Brand

Flexa

Family

US-M

Part Number

15010330016

Part Number (Old)

5010.330.016

Fits Conduit Types

AIRflex-GRS, AIRflex-K, AIRflex-KUW-PU-AS, AIRflex-KUW-PVC-AS

Thread Type

Metric

Thread Size

M16 x 1.5

Thread Length C (mm)

10

Body Length D (mm)

33

Material

Ni-Brass

OD Outside Diameter (mm)

17

ΦI Inside Diameter (mm)

11.5

ΦB Max Outer Diameter (mm)

27

Weight (kg|100)

3

Package Size

50 pcs

IP Rating

IP 54

Low Temperature Rating (°C)

-40

High Temperature Rating (°C)

125

Data Sheet

Properties

  • highly watertight and dustproof
  • friction-type locking of conduit and screw connector
  • correct grounding
  • covering of the conduit ends
  • vibration and tension proof

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • automation
  • shipbuilding
  • electrical installations

Certifications
