5010.330.010 / 15010330010 Flexa US-M M10 x 1.0 mm nickel-plated brass straight connector for 10.0 mm OD AIRflex® conduits

Mfr. Part # 15010330010 Categories , , ,

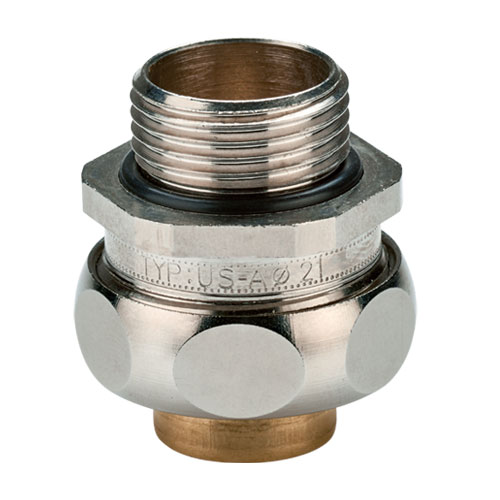

The Flexa US-M 15010330010 (Old Part Number 5010.330.010) is a straight nickel-plated brass conduit connector with metric M10 x 1.0 mm outer thread.

This rugged, high-quality, machined nickel-plated brass conduit fitting features:

  • pre-mounted outer “O” sealing ring made of NBR Perbunan Nitrile rubber
  • brass thrust collar
  • brass or plastic ferrule
  • highly secure compression style conduit connection
  • very good vibration and tension tolerance

Use with the following Flexa liquidtight flexible conduits:

  • AIRflex®-KUW-PVC-AS, AIRflex®-KUW-PU-AS, AIRflex®-GRS, AIRflex®-K

Also available in a small 10 piece pack: Check here for US-M small pack part # 5010.830.010

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$25.40 US$25.40
5 US$24.64 US$123.19
10 US$24.13 US$241.30
15 US$22.86 US$342.90
25 US$21.59 US$539.75
50 US$20.32 US$1,016.00
100 US$19.05 US$1,905.00
250+ US$17.78 US$4,445.00+
Unit Cost : US$
Extended Cost : US$25.4
Add to Quote

Specifications

Product Type

Metal Body Fitting

Brand

Flexa

Family

US-M

Part Number

15010330010

Part Number (Old)

5010.330.010

Fits Conduit Types

AIRflex-GRS, AIRflex-K, AIRflex-KUW-PU-AS, AIRflex-KUW-PVC-AS

Thread Type

Metric

Thread Size

M10 x 1.0

Thread Length C (mm)

10

Body Length D (mm)

31

Material

Ni-Brass

OD Outside Diameter (mm)

10

ΦI Inside Diameter (mm)

6

ΦB Max Outer Diameter (mm)

19

Weight (kg|100)

1.39

Package Size

50 pcs

IP Rating

IP 54

Low Temperature Rating (°C)

-40

High Temperature Rating (°C)

125

Data Sheet

Properties

  • highly watertight and dustproof
  • friction-type locking of conduit and screw connector
  • correct grounding
  • covering of the conduit ends
  • vibration and tension proof

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • automation
  • shipbuilding
  • electrical installations

Certifications
