5010.328.020 / 15010328020 Flexa US-M M20 x 1.5 mm nickel-plated brass straight connector for 21.0 mm OD conduit

Product Name:
5010.328.020 / 15010328020 Flexa US-M M20 x 1.5 mm nickel-plated brass straight connector for 21.0 mm OD conduit

Flexa Logo
Mfr. Part # 15010328020 Categories , , ,

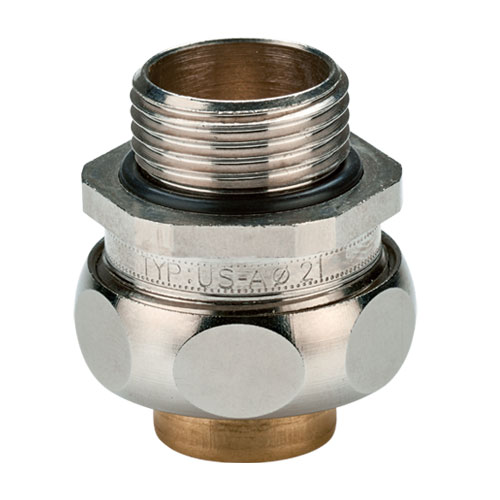

The Flexa US-M 15010328020 (Old Part Number 5010.328.020) is a straight nickel-plated brass conduit connector with metric M20 x 1.5 mm outer thread.

This rugged, high-quality, machined nickel-plated brass conduit fitting features:

Use with the following Flexa liquidtight flexible conduits (IP65 sealing):

Also available in a small 10 piece pack: Check here for US-M small pack part # 5010.828.020

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$27.74 US$27.74
5 US$26.91 US$134.54
10 US$26.35 US$263.53
15 US$24.97 US$374.49
25 US$23.58 US$589.48
50 US$22.19 US$1,109.60
100 US$20.81 US$2,080.50
250+ US$19.42 US$4,854.50+
Unit Cost : US$
Extended Cost : US$27.74
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Metal Body Fitting
Brand

Flexa
Family

US-M
Part Number

15010328020
Part Number (Old)

5010.328.020
Fits Conduit Types

FLEXAgraff-PU-AS, FLEXAgraff-PU-F, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC-AS
Thread Type

Metric
Thread Size

M20 x 1.5
Thread Length C (mm)

10
Body Length D (mm)

33
Material

Ni-Brass
OD Outside Diameter (mm)

21
ΦI Inside Diameter (mm)

15.5
ΦB Max Outer Diameter (mm)

31
Weight (kg|100)

3.94
IP Rating

IP 67
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

125

Data Sheet

Properties

  • highly watertight and dustproof
  • friction-type locking of conduit and screw connector
  • correct grounding
  • covering of the conduit ends
  • vibration and tension proof

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • automation
  • shipbuilding
  • electrical installations
