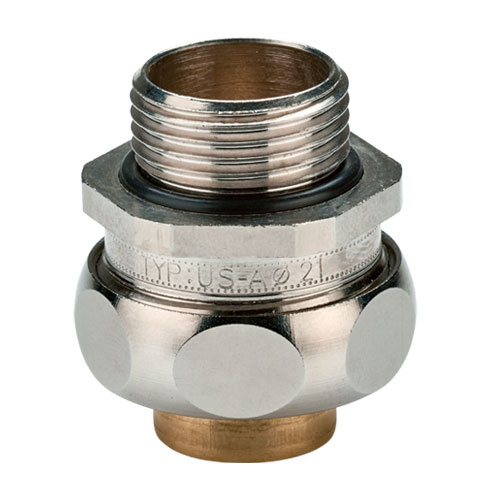

The Flexa US-M 15010328016 (Old Part Number 5010.328.016) is a straight nickel-plated brass conduit connector with metric M16 x 1.5 mm outer thread.
This rugged, high-quality, machined nickel-plated brass conduit fitting features:
- pre-mounted outer “O” sealing ring made of NBR Perbunan Nitrile rubber
- brass thrust collar
- brass or plastic ferrule
- highly secure compression style conduit connection
- grounding / bonding supported
- very good vibration and tension tolerance
Use with the following Flexa liquidtight flexible conduits:
- SPR-PVC-AS, SPR-PA, SPR-PU-AS, SPR-PU-F (IP65 sealing)
- FLEXAgraff®-PU-AS, FLEXAgraff®-PU-F (IP65 sealing)
Also available in a small 10 piece pack: Check here for US-M small pack part # 5010.828.016
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$28.59 | US$28.59 |
| 5 | US$27.73 | US$138.66 |
| 10 | US$27.16 | US$271.61 |
| 15 | US$25.73 | US$385.97 |
| 25 | US$24.30 | US$607.54 |
| 50 | US$22.87 | US$1,143.60 |
| 100 | US$21.44 | US$2,144.25 |
| 250+ | US$20.01 | US$5,003.25+ |
Unit Cost : US$
Extended Cost : US$28.59
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | US-M |
| Part Number | 15010328016 |
| Part Number (Old) | 5010.328.016 |
| Fits Conduit Types | FLEXAgraff-PU-AS, FLEXAgraff-PU-F, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC-AS |
| Thread Type | Metric |
| Thread Size | M16 x 1.5 |
| Thread Length C (mm) | 10 |
| Body Length D (mm) | 33 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 17 |
| ΦI Inside Diameter (mm) | 11.5 |
| ΦB Max Outer Diameter (mm) | 27 |
| Weight (kg|100) | 3 |
| Package Size | 50 pcs |
| IP Rating | IP 67 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
