Flexa USW-M 5011.535.025 / 15011535025

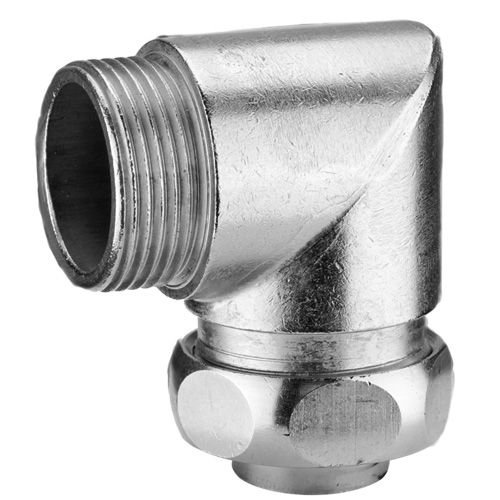

The Flexa USW-M 15011535025 (Old Part Number 5011.535.025) is described as a metal connector, safety-type, 90° elbow, metric M25 x 1.5 outer thread, incl. ferrule [brass], sealing and O-ring [NBR].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$87.42 | US$87.42 |
| 5 | US$84.80 | US$423.99 |
| 10 | US$83.05 | US$830.49 |
| 15 | US$78.68 | US$1,180.17 |
| 20 | US$74.31 | US$1,486.14 |
| 25+ | US$69.94 | US$1,748.40+ |
Unit Cost : US$
Extended Cost : US$87.42
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USW-M |
| Part Number | 15011535025 |
| Part Number (Old) | 5011.535.025 |
| Fits Conduit Types | AIRflex-KUW-EDU, SPR-PVC-EDU-AS |
| Thread Type | Metric |
| Thread Size | M25 x 1.5 |
| Thread Length C (mm) | 10 |
| Body Length D (mm) | 45 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 21 |
| ΦI Inside Diameter (mm) | 14.5 |
| ΦB Max Outer Diameter (mm) | 31 |
| Weight (kg|100) | 10 |
| Package Size | 25 pcs |
| IP Rating | IP 54 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration proof and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
Certifications
