Mfr. Part #
15011528012
Categories Elbow 90°, IBIS FLEXA USW | USB Metal Elbow Fitting 25 Pack, Metal Body Fittings, USW-M

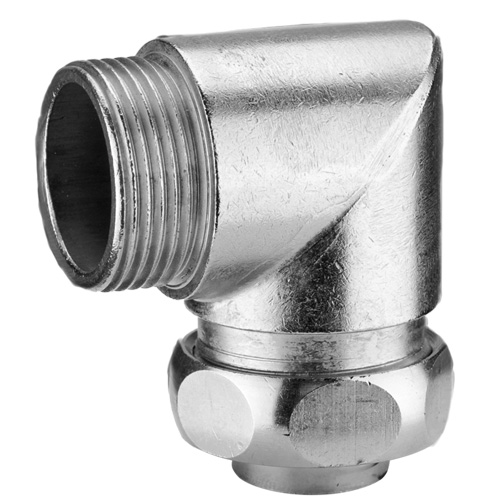

The Flexa USW-M 15011528012 (Old Part Number 5011.528.012) is described as a metal connector, safety-type, 90° elbow, metric M12 x 1.5 outer thread, incl. ferrule [brass], sealing and O-ring [NBR].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$80.77 | US$80.77 |
5 | US$78.35 | US$391.73 |
10 | US$76.73 | US$767.32 |
15 | US$72.69 | US$1,090.40 |
20 | US$68.65 | US$1,373.09 |
25+ | US$64.62 | US$1,615.40+ |
Unit Cost : US$
Extended Cost : US$80.77
Specifications
Product Type | Metal Body Fitting |
---|---|
Brand | Flexa |
Family | USW-M |
Part Number | 15011528012 |
Part Number (Old) | 5011.528.012 |
Fits Conduit Types | AIRflex-KUW-EDU, FLEXAgraff-CU-AS, SPR-CU-AS, SPR-EDU-AS, SPR-PVC-EDU-AS |
Thread Type | Metric |
Thread Size | M12 x 1.5 |
Thread Length C (mm) | 8 |
Body Length D (mm) | 32 |
Material | Ni-Brass |
OD Outside Diameter (mm) | 10 |
ΦI Inside Diameter (mm) | 6 |
ΦB Max Outer Diameter (mm) | 19 |
Weight (kg|100) | 2.8 |
Package Size | 25 pcs |
IP Rating | IP 40 |
Low Temperature Rating (°C) | -40 |
High Temperature Rating (°C) | 125 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration proof and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
