Flexa USW-M 5010.539.016 / 15010539016 M16 x 1.5 mm nickel-plated brass 90° elbow connector for 14.0 mm OD conduit

Product Name:
Flexa USW-M 5010.539.016 / 15010539016 M16 x 1.5 mm nickel-plated brass 90° elbow connector for 14.0 mm OD conduit

Mfr. Part # 15010539016 Categories 90° Elbow Metal Body Fittings, IBIS FLEXA USW | USB Metal Elbow Fitting 25 Pack, Metal Body Fittings, USW-M

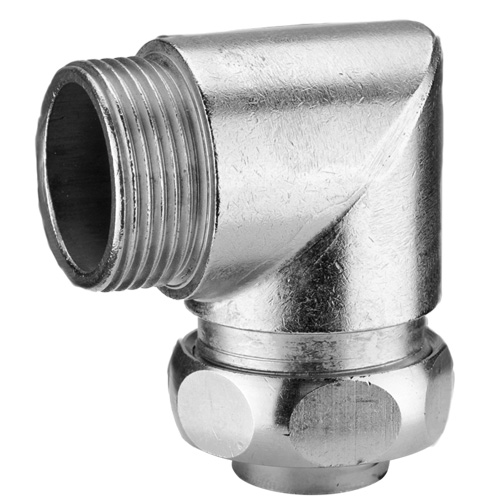

The Flexa USW-M 15010539016 (Old Part Number 5010.539.016) is a 90° elbow conduit connector made of nickel-plated brass with metric M16 x 1.5 outer thread.

This rugged, high-quality, machined conduit fitting features:

includes outer metric “O” sealing ring made of NBR Nitrile rubber
brass thrust collar with a brass or plastic ferrule
highly secure compression style conduit connection
grounding / bonding supported
very good vibration and tension tolerance

Use with the following Flexa conduits (IP40 sealing):

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 1 – 2 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$59.03	US$59.03
5	US$57.26	US$286.30
10	US$56.08	US$560.79
15	US$53.13	US$796.91
20	US$50.18	US$1,003.51
25+	US$47.22	US$1,180.60+

Unit Cost : US$

Extended Cost : US$59.03

Specifications

Package Size	25 pcs
Product Type	Metal Body Fitting
Brand	Flexa
Family	USW-M
Part Number	15010539016
Part Number (Old)	5010.539.016
Fits Conduit Types	FLEXAgraff-AS, FLEXAgraff-VA
Thread Type	Metric
Thread Size	M16 x 1.5
Thread Length C (mm)	8
Body Length D (mm)	36
Material	Ni-Brass
OD Outside Diameter (mm)	14
ΦI Inside Diameter (mm)	10.5
ΦB Max Outer Diameter (mm)	23
Weight (kg\|100)	3.6
IP Rating	IP 40
Low Temperature Rating (°C)	-40
High Temperature Rating (°C)	125
