Flexa USW-M 5010.528.050 / 15010528050 M50 x 1.5 mm nickel-plated brass 90° elbow connector for 45.0 mm OD conduit

Product Name:
Flexa USW-M 5010.528.050 / 15010528050 M50 x 1.5 mm nickel-plated brass 90° elbow connector for 45.0 mm OD conduit

Flexa Logo
Mfr. Part # 15010528050 Categories , , ,

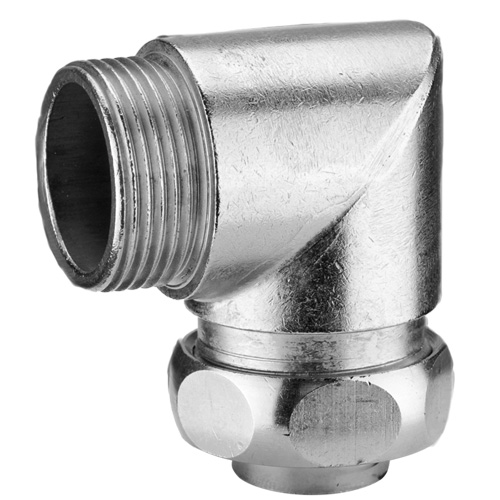

The Flexa USW-M 15010528050 (Old Part Number 5010.528.050) is a 90° elbow conduit connector made of nickel-plated brass with metric M50 x 1.5 outer thread.

This rugged, high-quality, machined conduit fitting features:

Use with the following Flexa liquidtight flexible conduits (IP65 sealing):

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1 – 2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$200.50 US$200.50
5 US$180.45 US$902.25
10+ US$160.40 US$1,604.00+
Unit Cost : US$
Extended Cost : US$200.5
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Metal Body Fitting
Brand

Flexa
Family

USW-M
Part Number

15010528050
Part Number (Old)

5010.528.050
Fits Conduit Types

FLEXAgraff-PU-AS, FLEXAgraff-PU-F, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC-AS
Thread Type

Metric
Thread Size

M50 x 1.5
Thread Length C (mm)

12
Body Length D (mm)

77
Material

Ni-Brass
OD Outside Diameter (mm)

45
ΦI Inside Diameter (mm)

36.5
ΦB Max Outer Diameter (mm)

57
Weight (kg|100)

26.9
IP Rating

IP 65
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

125

Data Sheet

Properties

  • highly watertight and dustproof
  • friction-type locking of conduit and screw connector
  • correct grounding
  • covering of the conduit ends
  • vibration proof and tension proof

Applications

  • machine and plant constructions
  • automotive
  • railway industry
  • automation
  • shipbuilding
  • electrical installations

Certifications
