Flexa USB-M 5025.327.016 / 15025327016

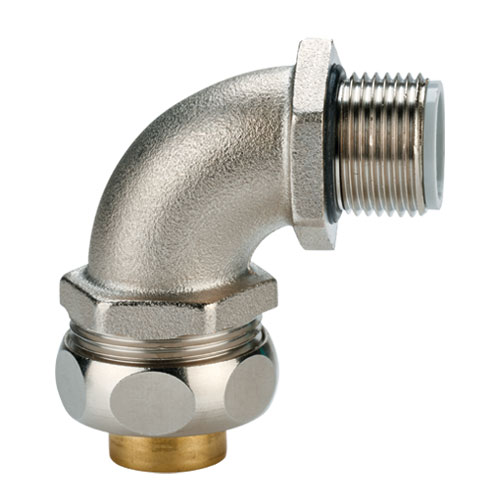

The Flexa USB-M 15025327016 (Old Part Number 5025.327.016) is described as a metal connector, safety-type, 90° bend, metric M16 x 1.5 outer thread, including ferrule [brass], sealing and O-ring [NBR].
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$71.88 | US$71.88 |
| 5 | US$69.72 | US$348.62 |
| 10 | US$68.29 | US$682.86 |
| 15 | US$64.69 | US$970.38 |
| 20 | US$61.10 | US$1,221.96 |
| 25 | US$57.50 | US$1,437.60 |
| 50 | US$53.91 | US$2,695.50 |
| 100+ | US$50.32 | US$5,031.60+ |
Unit Cost : US$
Extended Cost : US$71.88
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | USB-M |
| Part Number | 15025327016 |
| Part Number (Old) | 5025.327.016 |
| Fits Conduit Types | FLEXAgraff-AS, FLEXAgraff-VA, SPR-AS, SPR-VA |
| Thread Type | Metric |
| Thread Size | M16 x 1.5 |
| Thread Length C (mm) | 11.5 |
| Body Length D (mm) | 47.2 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 17 |
| ΦI Inside Diameter (mm) | 10.4 |
| ΦB Max Outer Diameter (mm) | 27 |
| Weight (kg|100) | 16.4 |
| Package Size | 25 pcs |
| IP Rating | IP 40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 100 |
Data Sheet
Properties
- highly watertight and dustproof
- friction-type locking of conduit and screw connector
- correct grounding
- covering of the conduit ends
- vibration and tension proof
Applications
- machine and plant constructions
- automotive
- railway industry
- automation
- shipbuilding
- electrical installations
Certifications
