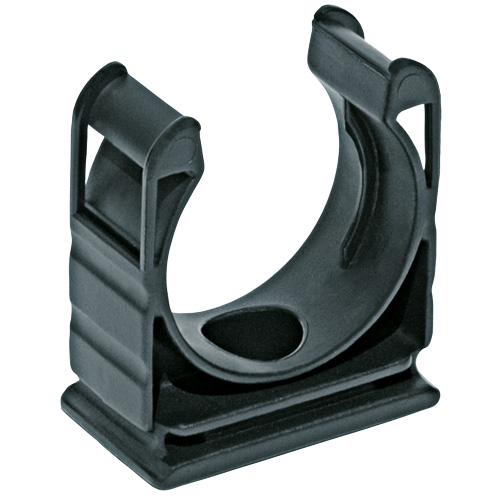

5030.025.216 / 15030025216 RQH black 21.2 mm OD light duty nylon plastic mounting clip for use with corrugated plastic conduits
The Flexaquick RQH 15030025216 (Old Part Number 5030.025.216) is a Black 21.2 mm OD light duty mounting clip for use with corrugated nylon plastic conduits like ROHRflex.
The clip installs easily anywhere using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and are securely fixed.
Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).
In Stock: 100
Stock: 100 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
100 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$2.68 | US$2.68 |
| 5 | US$2.60 | US$13.00 |
| 10 | US$2.55 | US$25.46 |
| 15 | US$2.41 | US$36.18 |
| 25 | US$2.28 | US$56.95 |
| 50 | US$2.14 | US$107.20 |
| 100 | US$2.01 | US$201.00 |
| 250 | US$1.88 | US$469.00 |
| 500+ | US$1.74 | US$871.00+ |
Unit Cost : US$
Extended Cost : US$2.68
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | RQH |
| Part Number | 15030025216 |
| Part Number (Old) | 5030.025.216 |
| Colour | Black |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 21.2 |
| Width A (mm) | 26.5 |
| Height (mm) | 33 |
| D (mm) | 21 |
| Thickness E (mm) | 15 |
| Mounting Hole Diameter (mm) | 6.5 |
| Weight (kg|100) | 0.5 |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113199867 |
Data Sheet
Properties
- fastening mounting hole
- ribbed fixing for strain relief
- assembly of varying sizes joined in line or on top of each other
- for use in combining with C-profile bar
- rated V2 [UL94]
Applications
- Light Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
Certifications
