Mfr. Part #
15030025209
Categories Accessories, Conduit Clips and Caps | Light and Medium Duty, IBIS FLEXAquick Fitting 50 Pack, RQH

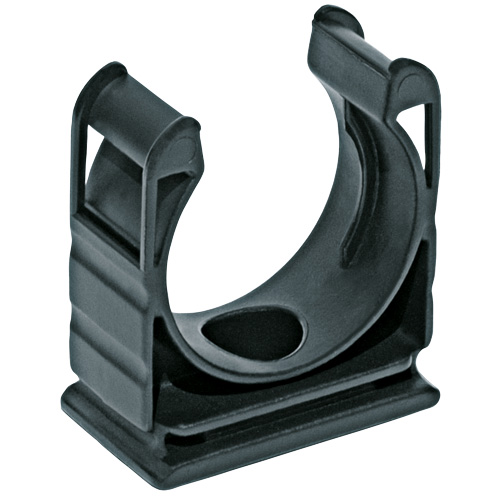

The Flexaquick RQH 15030025209 (Old Part Number 5030.025.209) is a Black 13.0 mm OD light duty mounting clip for use with corrugated nylon plastic conduits like ROHRflex.
The clip installs easily anywhere using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and are securely fixed.
Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).
In Stock: 837
Stock: 837 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
837 in stock
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$2.26 | US$2.26 |
5 | US$2.19 | US$10.96 |
10 | US$2.15 | US$21.47 |
15 | US$2.03 | US$30.51 |
25 | US$1.92 | US$48.03 |
50 | US$1.81 | US$90.40 |
100 | US$1.70 | US$169.50 |
250+ | US$1.58 | US$395.50+ |
Unit Cost : US$
Extended Cost : US$2.26
Specifications
Product Type | Accessories |
---|---|
Brand | Flexa |
Family | RQH |
Part Number | 15030025209 |
Part Number (Old) | 5030.025.209 |
Colour | Black |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 13.000 |
Width A (mm) | 19.5 |
Height (mm) | 22.6 |
D (mm) | 14.5 |
Thickness E (mm) | 15.0 |
Mounting Hole Diameter (mm) | 5.5 |
Weight (kg|100) | 0.3 |
Package Size | 50 pcs |
Low Temperature Rating (°C) | -40.0 |
High Temperature Rating (°C) | 120.0 |
Data Sheet
Properties
- fastening mounting hole
- ribbed fixing for strain relief
- assembly of varying sizes joined in line or on top of each other
- for use in combining with C-profile bar
- rated V2 [UL94]
Applications
- Light Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
