Mfr. Part #
15030025013
Categories Accessories, Conduit Clips and Caps | Light and Medium Duty, IBIS FLEXAquick Fitting 50 Pack, RQH

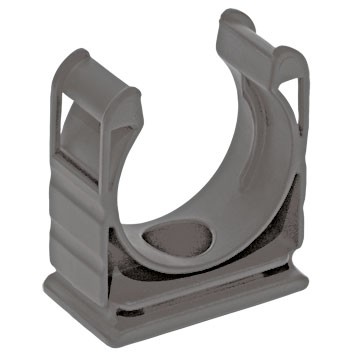

The Flexa RQH 15030025013 (Old Part Number 5030.025.013) is a grey 18.5 mm OD light duty nylon plastic mounting clip for use with corrugated plastic conduits like ROHRflex. The clip installs easily anywhere using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and are securely fixed. Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$2.47 | US$2.47 |
5 | US$2.40 | US$11.98 |
10 | US$2.35 | US$23.47 |
15 | US$2.22 | US$33.35 |
25 | US$2.10 | US$52.49 |
50 | US$1.98 | US$98.80 |
100 | US$1.85 | US$185.25 |
250+ | US$1.73 | US$432.25+ |
Unit Cost : US$
Extended Cost : US$2.47
Specifications
Product Type | Accessories |
---|---|
Brand | Flexa |
Family | RQH |
Part Number | 15030025013 |
Part Number (Old) | 5030.025.013 |
Colour | Grey |
Material | PA6 Plastic |
OD Outside Diameter (mm) | 18.500 |
Width A (mm) | 24.5 |
Height (mm) | 29.0 |
D (mm) | 18.0 |
Thickness E (mm) | 15.0 |
Mounting Hole Diameter (mm) | 5.5 |
Weight (kg|100) | 0.5 |
Package Size | 50 pcs |
Low Temperature Rating (°C) | -40.0 |
High Temperature Rating (°C) | 120.0 |
Data Sheet
Properties
- fastening mounting hole
- ribbed fixing for strain relief
- assembly of varying sizes joined in line or on top of each other
- for use in combining with C-profile bar
- rated V2 [UL94]
Applications
- Light Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
