Flexa RQH 5030.025.009 / 15030025009

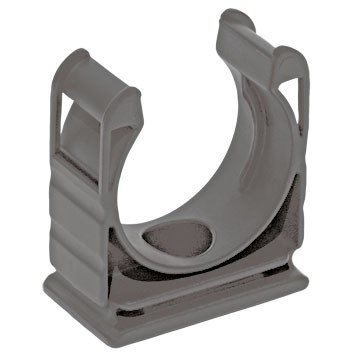

The Flexa RQH 15030025009 (Old Part Number 5030.025.009) is a grey 13.0 mm OD light duty nylon plastic mounting clip for use with corrugated plastic conduits like ROHRflex. The clip installs easily anywhere using a single mounting screw or onto a C-profile bar. Conduits snap into the clip and are securely fixed. Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$2.22 | US$2.22 |
| 5 | US$2.15 | US$10.77 |
| 10 | US$2.11 | US$21.09 |
| 15 | US$2.00 | US$29.97 |
| 25 | US$1.89 | US$47.18 |
| 50 | US$1.78 | US$88.80 |
| 100 | US$1.67 | US$166.50 |
| 250 | US$1.55 | US$388.50 |
| 500+ | US$1.44 | US$721.50+ |
Unit Cost : US$
Extended Cost : US$2.22
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | RQH |
| Part Number | 15030025009 |
| Part Number (Old) | 5030.025.009 |
| Colour | Grey |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 13 |
| Width A (mm) | 19.5 |
| Height (mm) | 22.6 |
| D (mm) | 14.5 |
| Thickness E (mm) | 15 |
| Mounting Hole Diameter (mm) | 5.5 |
| Weight (kg|100) | 0.3 |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113199744 |
Data Sheet
Properties
- fastening mounting hole
- ribbed fixing for strain relief
- assembly of varying sizes joined in line or on top of each other
- for use in combining with C-profile bar
- rated V2 [UL94]
Applications
- Light Applications
- Machine and Plant Constructions
- Insulated Electrical Installations
Certifications
