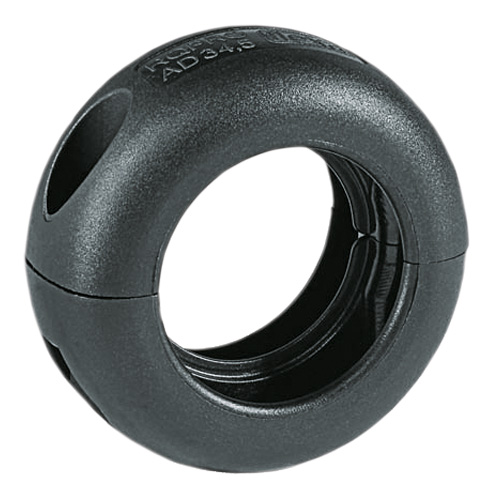

The FLEXAquick® RQPRO 155242200 (Old Part Number 5524.042.200) is a 42.5 mm OD heavy-duty nylon plastic anti-abrasion ring made for use with corrugated plastic conduits like ROHRflex.

The RQPRO abrasion ring prevents conduit damage and abrasion wear by limiting conduit contact with other conduits or equipment having continuous movement like on an active robot installation. Improves conduit performance while extending the life of the conduit installation.

The two-piece abrasion ring wraps around the conduit, and locks into the corrugation grooves of the conduit fixing it in place. Installs easily using two stainless-steel screws and self-locking nuts (included).

Meets European rail standard EN 45545-2 (HL3), and NFPA 130 for fire safety protection for Fixed Guideway Transit and Passenger Rail Systems.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$17.40 US$17.40
5 US$15.66 US$78.30
10 US$13.92 US$139.20
20 US$13.05 US$261.00
50+ US$12.18 US$609.00+
Unit Cost : US$
Extended Cost : US$17.4
Add to Quote

Specifications

Package Size

10 pcs

Conduit OD (mm)

42.5

Product Type

Accessories

Brand

Flexa

Family

RQPRO

Part Number

15524042200

Part Number (Old)

5524.042.200

Colour

Black

Material

PA Plastic

Weight (kg|100)

4.1

Low Temperature Rating (°C)

-40.0

High Temperature Rating (°C)

120.0

Outside Diameter A (mm)

66.0

Width B (mm)

30.0

Bolt Centers C (mm)

54.0

Data Sheet

Properties

  • free of silicone, cadmium, halogen
  • self-extinguishing
  • fit for high mechanical stress
  • impact-resistant
  • incl. stainless steel screw with self-locking nut
  • rated V2 [UL94]

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
