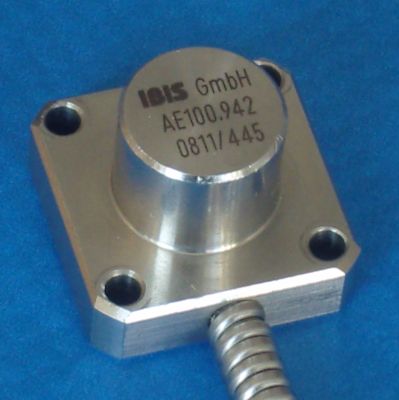

The IBIS Sensor # AE100.942.150.2 is a 100 mV/g, One Axis Accelerometer & Vibration Sensor, four bolt mount, 15 metre (49 ft) Armoured PUR Cable, Pigtail
In Stock: 0
Factory Lead-Time: Can Ship Immediately
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$808.35 | US$808.35+ |
Unit Cost : US$
Extended Cost : US$808.35
Specifications
| Product Type | Sensors |
|---|---|
| Brand | IBIS GmbH |
| Family | Sensors |
| Part Number | AE100.942.150.2 |
| Housing Material | Stainless Steel |
| Weight (g) | 750 |
| Connection | Pigtail |
| IP Rating | IP67 |
| Operating Temperature Range | -40 to +80 °C |
| Sensor Type | Piezo Electric |
| Number of Axes | 1 |
| Sensitivity (mV/g) | 100 |
| Resolution (g) | 0 |
| Acceleration Max (g) | 50 |
| Shock Resistance (g) | 5000 |
| Frequency Response | 0.5Hz to 10kHz |
| Spike Energy Measurement | 5kHz to 50kHz |
| Cable Length/Type | 15.0m PUR |
Data Sheet
Overview
- Full details coming soon
Certifications
