Mfr. Part #
AE10.942.080.2
Categories Sensors, Sensors, Vibration and Accelerometer Sensors

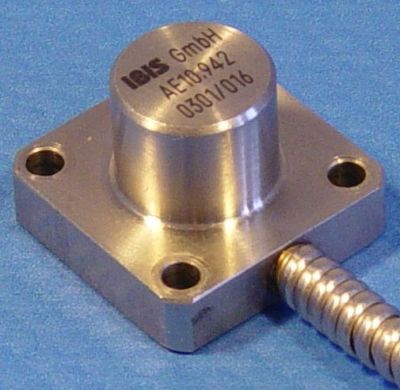

The IBIS Sensor # AE10.942.080.2 is a 10 mV/g, one axis Accelerometer & Vibration Sensor in a compact stainless steel package.
The sensor installs via a 4 bolt V4A stainless steel flange and hooks-up through an 8.0 metre (26 ft) armour jacketed PUR cable with 2-wire pigtail ends.
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | CAD$917.00 | CAD$917.00+ |
Unit Cost : CAD$
Extended Cost : CAD$917
Specifications
Product Type | Sensors |
---|---|
Brand | IBIS GmbH |
Family | Sensors |
Part Number | AE10.942.080.2 |
Housing Material | Stainless Steel |
Weight (g) | 500 |
Connection | Pigtail |
IP Rating | IP67 |
Operating Temperature Range | -40 to +80 °C |
Sensor Type | Piezo Electric |
Number of Axes | 1 |
Sensitivity (mV/g) | 10 |
Resolution (g) | 0 |
Acceleration Max (g) | 500 |
Shock Resistance (g) | 5000 |
Frequency Response | 0.5Hz to 10kHz |
Spike Energy Measurement | 5kHz to 50kHz |
Cable Length/Type | 8.0m PUR |
Data Sheet
Overview
- Full details coming soon
