Mfr. Part #
AE10.303.025.L
Categories Sensors, Sensors, Vibration and Accelerometer Sensors

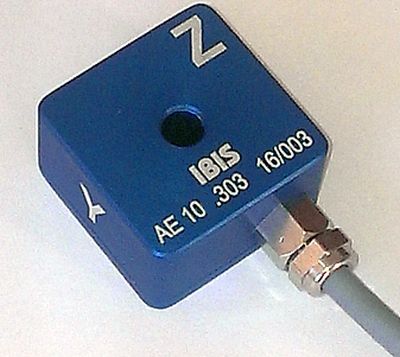

The IBIS Sensor # AE10.303.025.L is a 10 mV/g, Three Axes Accelerometer & Vibration Sensor, single bolt mount, 1.0 metre (3 ft) PUR Cable & Lemo connector
In Stock: 0
Factory Lead-Time: Can Ship Immediately
Specifications
Product Type | Sensors |
---|---|
Brand | IBIS GmbH |
Family | Sensors |
Part Number | AE10.303.025.L |
Housing Material | Aluminum |
Weight (g) | 250 |
Connection | Lemo |
IP Rating | IP67 |
Operating Temperature Range | -40 to +120 °C |
Sensor Type | Piezo Electric |
Number of Axes | 3 |
Sensitivity (mV/g) | 10 |
Resolution (g) | 0 |
Acceleration Max (g) | 500 |
Shock Resistance (g) | 5000 |
Frequency Response | 0.5Hz to 10kHz |
Spike Energy Measurement | 5kHz to 50kHz |
Cable Length/Type | 1.0 m PUR |
Data Sheet
Overview
- Full details coming soon
