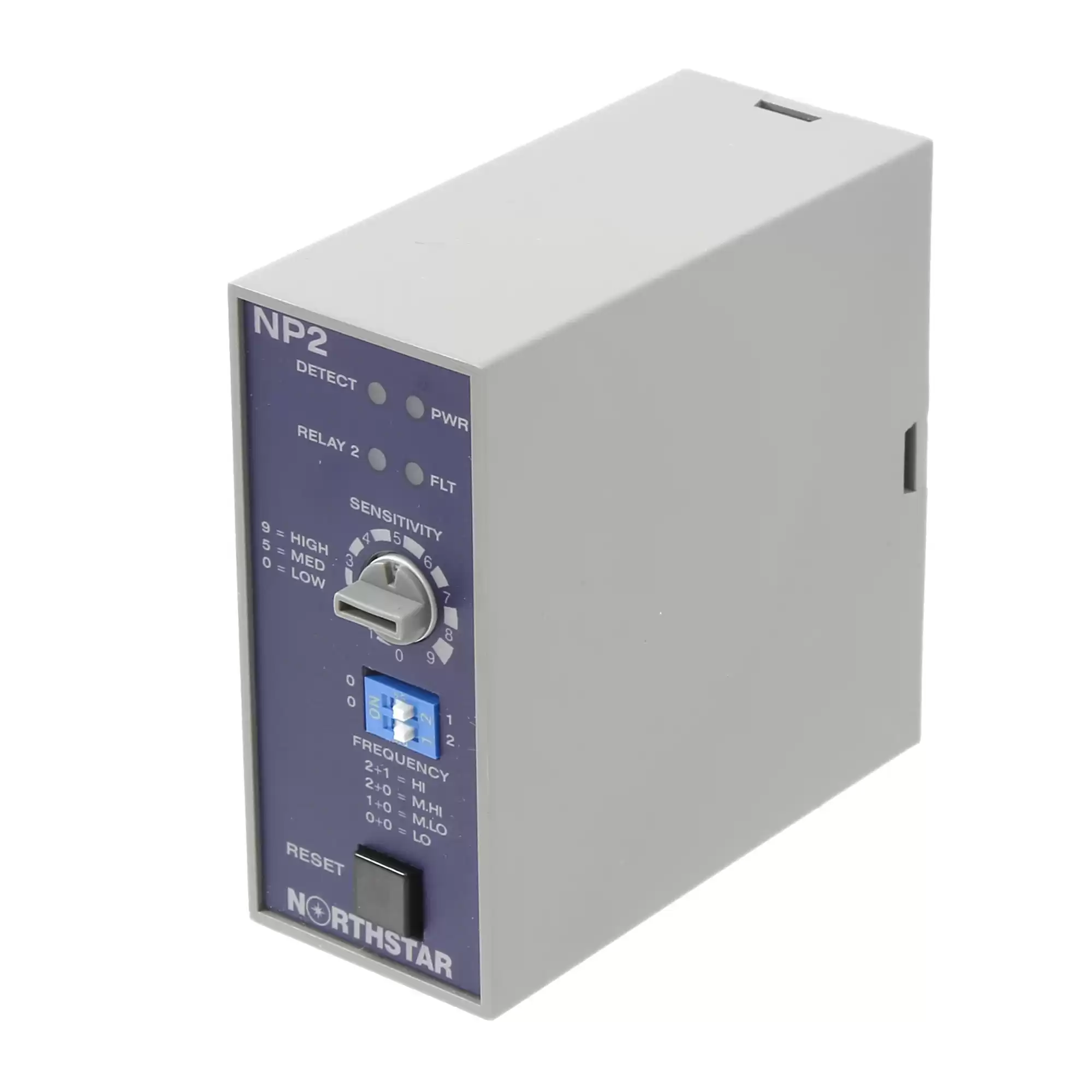

NP2-240 NorthStar Controls 240 VAC single channel vehicle loop detector

Product Name:
NP2-240 NorthStar Controls 240 VAC single channel vehicle loop detector

Mfr. Part # NP2-240 Categories , ,

The Northstar Controls NP2-240 is a 210 to 250 volt AC single channel vehicle loop detector. Features include:

  • 10 selectable sensitivities and 4 selectable loop frequencies
  • Wrong voltage protection
  • Output Timing – Extend & Delay
  • Selectable Permanent Presence times and selectable Pulse lengths – Factory settings: Presence time set to 1 hour / Pulse length set to 250msec
  • Separate Power, Detect and Fault Indicators
  • Automatic Sensitivity Boost

It’s simple and ready to use right out of the box or programmable for special installation requirements.

Installs via an 11-pin plug connector. Replace old or damaged detectors in seconds.

NOTE: Loop detectors are not returnable or refundable after purchase. Please make sure you know the supply voltage for your application and match the loop detector voltage to it!

In Stock: 0
Factory Lead-Time: Can ship in 3 – 5 days.
Quantity Unit Price Ext. Price
1+ US$118.34 US$118.34+
Unit Cost : US$
Extended Cost : US$118.34
Add to Quote

Specifications

Product Type

Sensors
Brand

NorthStar Controls
Family

NorthStar Controls Loop Detectors
Part Number

NP2-240
Housing Size

40 / 90 / 90 mm
Housing Material

Plastic
Weight (g)

500
Connection

11-pin plug
IP Rating

IP40
Operating Temperature Range

-35°F to 165°F / -37°C to 74°C
Number of Channels

1
Supply Voltage

200 to 270 VAC
Output

Relay 7A @ 277 VAC or 30VDC

Data Sheet

Overview

  • Full details coming soon

Certifications
