Mfr. Part #
RK-3R
Categories Diablo Controls Loop Detectors, Sensors, Vehicle Loop Detectors

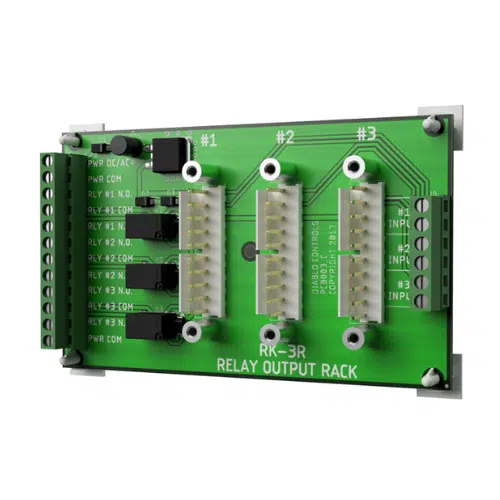

The Diablo Controls RK-3R mini-rack provides a single relay output for up to three plug-in vehicle detectors with solid-state transistor outputs. Use with any of Diablo Controls models DSP-13, AVI-40, DSP-40, DSP-50, and DSP-55.
The mini-rack mounts easily anywhere in a cabinet using the four adhesive standoffs. Two terminal strips provide all power and hook-up connections.
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$75.08 | US$75.08+ |
Unit Cost : US$
Extended Cost : US$75.08
Specifications
Product Type | Sensors |
---|---|
Brand | Diablo Controls |
Family | Diablo Controls Loop Detectors |
Part Number | RK-3R |
Housing Size | 127 / 76 / 19 mm |
Weight (g) | 100 |
Connection | Terminal Strip |
Operating Temperature Range | -35°F to 165°F / -37°C to 74°C |
Number of Channels | 3 |
Supply Voltage | +10 to 30 VAC or VDC |
Output | 3 x Relay 3A @ 125 Volts |
Overview
- Many vehicle detectors are designed to be plugged into a rack including some of the more popular Diablo Controls models. In those installations where a large rack is not available, Diablo Controls has designed a mini rack.
- The RK-3R is designed to accept up to three plug-in vehicle detectors on one side and accept the appropriate wires via a terminal block on the other side.
- The entire mini rack is supported by four adhesive standoffs that attach anywhere inside the control cabinet.
- The rack is designed for detectors that have a solid state output, but need a single relay output.
- Use with Diablo Controls Detectors: DSP-13, DSP-40, DSP-55 and AVI-40
- Simplifies wiring
- Works with a wide supply voltage range of 10.5-30 VAC or VDC
- Each rack slot has a single relay SPDT (form C) output. A common, Normally Open, and Normally Closed.
- Relay Output Rated at 3 amps @ 125 VAC
- Includes four self-adhesive mounts
- Compact size – Easy to install
