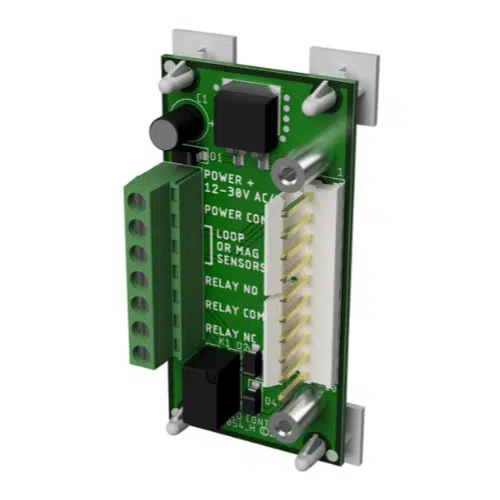

The Diablo Controls RK-1R mini-rack provides a relay output for a single plug-in vehicle detector having only a solid-state transistor output. Use with any of Diablo Controls models DSP-13, AVI-40, DSP-40, DSP-50, and DSP-55.
The mini-rack mounts easily anywhere in a cabinet using the four adhesive standoffs. A terminal strip provides all power and hook-up connections.
In Stock: 2
Factory Lead-Time: Can Ship Immediately
2 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$75.33 | US$75.33+ |
Unit Cost : US$
Extended Cost : US$75.33
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Diablo Controls |
| Family | Diablo Controls Loop Detectors |
| Part Number | RK-1R |
| Housing Size | 76 / 38 / 19 mm |
| Weight (g) | 100 |
| Connection | Terminal Strip |
| Operating Temperature Range | -35°F to 165°F / -37°C to 74°C |
| Number of Channels | 1 |
| Supply Voltage | +10 to 30 VAC or VDC |
| Output | Relay 3A @ 125 Volts |
Data Sheet
Overview
- Full details coming soon
Certifications
