Mfr. Part #
zws-15/CD/QS
Categories Cuboidal Body, Sensors, Ultrasonic

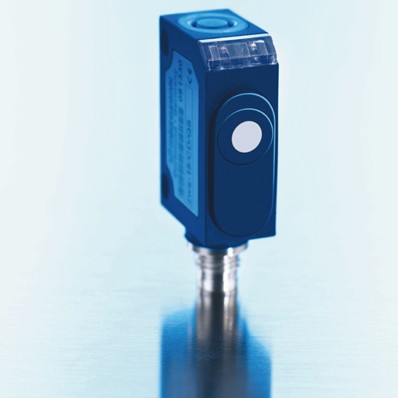

The Microsonic Cuboidal Body zws-15/CD/QS is a 20 – 250 mm range miniature Ultrasonic Proximity Sensor, PNP NO/NC output, and M8 – 4 pin connector.
Features include:
- Sensing range 20 – 250 mm
- Output: PNP NO/NC
- Very compact housing
- Narrow sound field
- Programming by Teach-in push-button
- Resolution of 0.20 mm
- Temperature compensation
- Operating voltage 20 – 30 VDC
- ABS plastic housing with IP67 sealing and M8 – 4 pin connection
In Stock: 0
Factory Lead-Time: Can ship in 3 – 5 days
Specifications
Product Type | Sensors |
---|---|
Brand | Microsonic |
Family | Cuboidal Body |
Part Number | zws-15/CD/QS |
Resolution | 0.056 mm |
Housing Material | ABS |
Switching Output | PNP NO/NC | 200 mA |
Interface | Teach-in |
Connection | M8 | 4-pin |
IP Rating | IP67 |
Operating Temperature Range | -25 to +70 °C |
Sensing Distance | 250 mm |
Body Size | ZWS Miniature |
Data Sheet
Overview
- Full details coming soon
