Mfr. Part #
sks-15/CU
Categories Cuboidal Body, Sensors, Ultrasonic

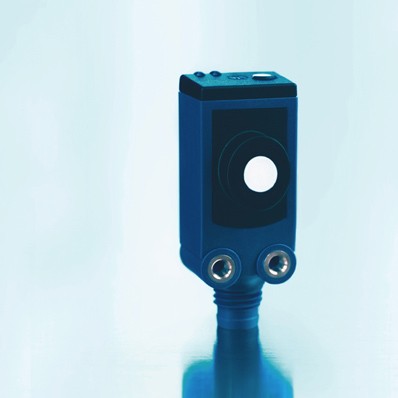

The Microsonic Cuboidal Body sks-15/CU is a 20 – 250 mm range Microsonic sks-15 Series Sub-Miniature Ultrasonic Distance Measurement Sensor, Analogue 0-10V Output
In Stock: 0
Factory Lead-Time: Can Ship Immediately
Specifications
Product Type | Sensors |
---|---|
Brand | Microsonic |
Family | Cuboidal Body |
Part Number | sks-15/CU |
Resolution | 0.10 mm |
Housing Material | ABS |
Switching Output | Analog 0-10 V |
Interface | Teach-in |
Connection | M8 | 4-pin |
IP Rating | IP67 |
Operating Temperature Range | -25 to +70 °C |
Sensing Distance | 250 mm |
Body Size | SKS Sub-Miniature |
Data Sheet
Overview
- Full details coming soon
