sks-15/CI Microsonic 20 – 250 mm range sub-miniature Ultrasonic Distance Measurement Sensor, analogue 4-20 mA output

Product Name:
sks-15/CI Microsonic 20 – 250 mm range sub-miniature Ultrasonic Distance Measurement Sensor, analogue 4-20 mA output

Mfr. Part # sks-15/CI Categories , ,

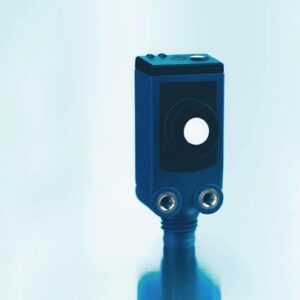

The Microsonic Cuboidal Body sks-15/CI is a 20 – 250 mm range sub-miniature Ultrasonic Distance Measurement Sensor with analogue 4-20 mA output.

Features:

  • Sensing range 20 – 250 mm
  • 1 x analogue 4-20 mA output
  • Simple target distance set-point programming via a Teach-in button
  • Resolution of 0.10 mm
  • ABS plastic IP67 housing with M8 – 4 pin connector plug
  • Easy mounting with two M3 screws

Applications for compact ultrasonic sensors: The sub-miniature sized sks-15/CI is an ideal sensor for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, small component detection, or any sensing application with limited installation space.

In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$338.68 US$338.68+
Unit Cost : US$
Extended Cost : US$338.68
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cuboidal Body
Part Number

sks-15/CI
Resolution

0.10 mm
Housing Material

ABS
Weight (g)

8
Switching Output

Analog 4-20mA
Interface

Teach-in
Connection

M8 | 4-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+15 to 30 VDC
Sensing Distance

250 mm
Body Size

SKS Sub-Miniature

Data Sheet

Overview

  • Full details coming soon
