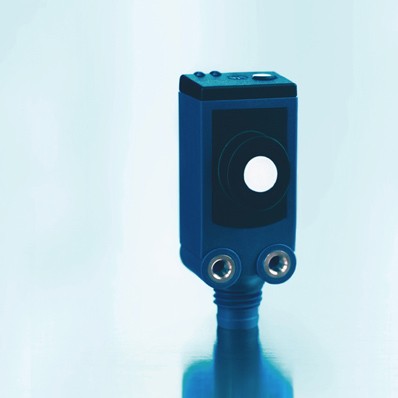

sks-15/CF/A Microsonic 20 – 250 mm range sub-miniature Ultrasonic Proximity Sensor, push-pull output, IO-Link enabled

Product Name:
sks-15/CF/A Microsonic 20 – 250 mm range sub-miniature Ultrasonic Proximity Sensor, push-pull output, IO-Link enabled

Mfr. Part # sks-15/CF/A Categories , ,

The Microsonic Cuboidal Body sks-15/CF/A is a 20 – 250 mm range sub-miniature Ultrasonic Proximity Sensor with push/pull output and IO-Link.

Features:

  • Sensing range 20 – 250 mm
  • 1 Push-Pull switching output
  • IO-Link interface
  • Simple target distance set-point programming via a Teach-in button or IO-Link.
  • Resolution of 0.10 mm
  • ABS plastic IP67 housing with M8 – 4 pin connector plug
  • Easy mounting with two M3 screws

Applications for compact ultrasonic sensors: The sub-miniature sized sks-15/CF/A is an ideal sensor for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, small component detection, or any sensing application with limited installation space.

In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
Quantity Unit Price Ext. Price
1+ US$292.57 US$292.57+
Unit Cost : US$
Extended Cost : US$292.57
Add to Quote

Specifications

Product Type

Sensors
Brand

Microsonic
Family

Cuboidal Body
Part Number

sks-15/CF/A
Model ID Number

13009
Resolution

0.10 mm
Housing Material

ABS
Weight (g)

8
Switching Output

Push-pull | 100 mA
Interface

IO-Link
Connection

M8 | 4-pin
IP Rating

IP67
Operating Temperature Range

-25 to +70 °C
Supply Voltage

+10 to 30 VDC
Sensing Distance

250 mm
Body Size

SKS Sub-Miniature

Data Sheet

Overview

  • Full details coming soon
