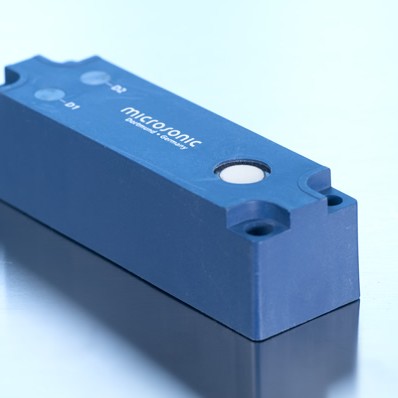

The Microsonic Cuboidal Body lcs-35/IU/QP is a 65 – 600 mm range compact Ultrasonic Distance Measurement Sensor, in a flat Housing, lateral sensing, analogue 4-20 mA and 0-10V outputs.
Features include:
- Sensing range 65 – 600 mm
- Analogue 4-20 mA and 0–10 V output with automatic selection
- Slim compact housing
- Narrow lateral sensing sound field
- Programming by Teach-in input
- Resolution of 0.18 mm
- Temperature compensation
- Operating voltage 9 – 30 VDC
- PBT plastic housing with IP65 sealing and M12 – 5 pin connection plug
Applications for lateral sensing compact ultrasonic sensors: The compact sized lcs-35/IU/QP is an ideal sensor for conveyor systems, packaging machines, fill-level check, wafer board detection, labelling machines, sorting systems, small component detection, part bowl feeders, or any sensing application with limited installation space.
In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$400.67 | US$400.67+ |
Unit Cost : US$
Extended Cost : US$400.67
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Microsonic |
| Family | Cuboidal Body |
| Part Number | lcs-35/IU/QP |
| Resolution | 0.18 mm |
| Housing Material | PBT |
| Switching Output | Analog 4-20mA | 0-10V |
| Interface | Teach-in |
| Connection | M12 | 5-pin |
| IP Rating | IP65 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 600 mm |
| Body Size | LCS Miniature |
Data Sheet
Overview
- Full details coming soon
Certifications
