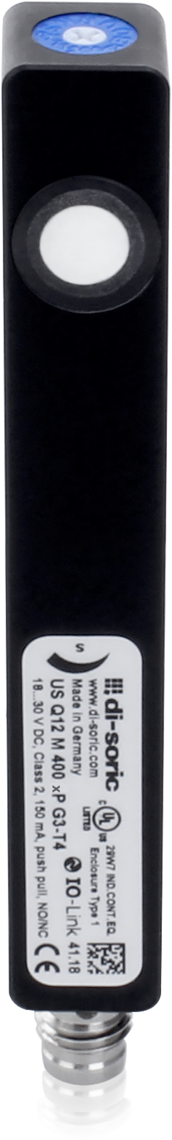

US-Q12-M-400-FP-G3-T4 di-soric 12 mm Compact Body Ultrasonic Sensor, 400 mm Range, IO-Link, Digital Output
The di-soric US-Q12-M-400-FP-G3-T4 is a 12 mm Compact body Ultrasonic Level Control Sensor, 400 mm Range, IO-Link, Digital Output
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Please request a quotation
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | di-soric |
| Family | Cuboidal Body |
| Part Number | US-Q12-M-400-FP-G3-T4 |
| Resolution | 1.0 mm |
| Housing Material | Aluminum | Black |
| Weight (g) | 150 |
| Switching Output | Push-pull | 150 mA | NO/NC |
| Interface | IO-Link |
| Connection | M8 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Sensing Distance | 400 mm |
| Body Size | Compact Cuboid |
Data Sheet
Overview
- Full details coming soon
