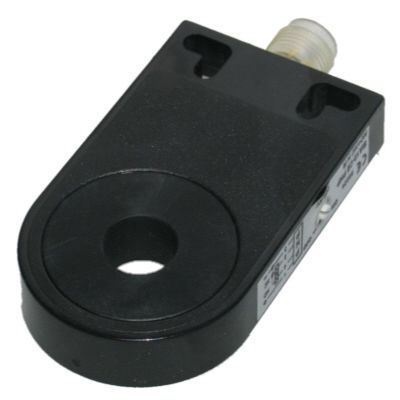

SIA Inductive Ring Sensor # SIA12-CE-PNP-NO+NC-HR, 12.0 mm diameter, PNP NO/NC output, M12 | 4-pin connection

Product Name:
SIA Inductive Ring Sensor # SIA12-CE-PNP-NO+NC-HR, 12.0 mm diameter, PNP NO/NC output, M12 | 4-pin connection

Mfr. Part # SIA12-CE-PNP-NO+NC-HR Categories , ,

The SIA12-CE-PNP-NO+NC-HR, model # SIA000141 is a 12.0 mm diameter inductive ring sensor with PNP NO/NC output, M12 | 4-pin connection.

Details:

  • Minimum detectable object size: 1.2 x 2.0 mm
  • Minimum distance between sensors: 30 mm
  • Pulse stretching: up to 100 mS, selectable activate / deactivate
  • Switching frequency: up to 1000 Hz
  • Compact size, easy two bolt installation
In Stock: 0
Factory Lead-Time: Can Ship in 2 – 3 weeks
Quantity Unit Price Ext. Price
1+ US$93.87 US$93.87+
Unit Cost : US$
Extended Cost : US$93.87
Add to Quote

Specifications

Product Type

Sensors
Brand

AECO
Family

SIA Inductive Ring Sensors
Part Number

SIA12-CE-PNP-NO+NC-HR
Model ID Number

SIA000141
Resolution

1.2 mm
Housing Material

PA Plastic
Weight (g)

100
Switching Output

pnp | NO/NC
Sensitivity Adjustment

Potentiometer
Connection

M12 | 4-pin
IP Rating

IP65
Operating Temperature Range

-20 to +60 °C
Ring Diameter

12 mm
Detection Principle

Static
Ring Material

PA Plastic

Data Sheet

Overview

  • Full details coming soon

Certifications
