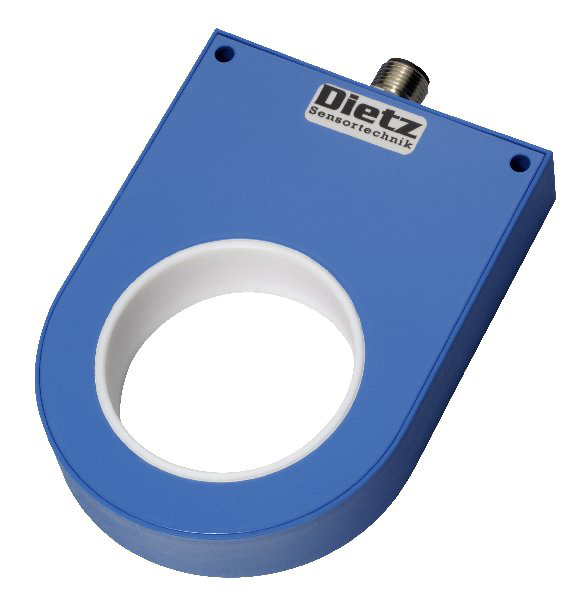

The Dietz IRD-50-PSK-ST4 is a 51 mm diameter inductive ring sensor, dynamic switching, PNP-NO output, M12, 4-pin connection
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Unit Cost : US$
Extended Cost : US$0
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Inductive Ring Sensors |
| Part Number | IRD-50-PSK-ST4 |
| Resolution | 2.5 mm |
| Housing Material | PA Plastic |
| Weight (g) | 150 |
| Switching Output | pnp | NO |
| Sensitivity Adjustment | Potentiometer |
| Connection | M12 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Supply Voltage | +10 to 35 VDC |
| Ring Diameter | 51.0 mm |
| Detection Principle | Dynamic |
| Ring Material | PETP Plastic |
Data Sheet
Overview
- Full details coming soon
Certifications
