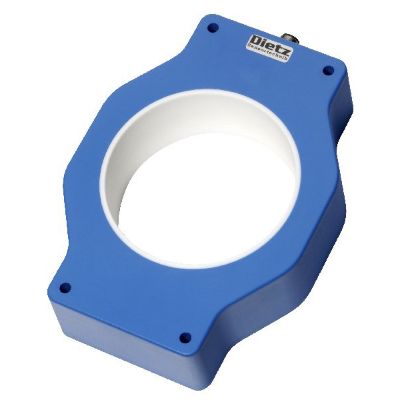

The Dietz IRD-100-PSK-ST4 is a 100 mm diameter inductive ring sensor with dynamic switching, PNP NO output, M12, 4-pin connection.
Note: The IRD-100-PSK-ST4 has been upgraded and replaced by sensor IRD-100-PUK-ST4 which now includes both PNP NO and NC output. Apart from this, the sensors are identical physically, performance and electrically.
In Stock: 0
Factory Lead-Time: Can Ship in 1 – 2 weeks
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$767.74 | US$767.74+ |
Unit Cost : US$
Extended Cost : US$767.74
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Inductive Ring Sensors |
| Part Number | IRD-100-PSK-ST4 |
| Resolution | 5.0 mm |
| Housing Material | PA Plastic |
| Weight (g) | 100 |
| Switching Output | pnp | NO |
| Sensitivity Adjustment | Potentiometer |
| Connection | M12 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Ring Diameter | 101 mm |
| Detection Principle | Dynamic |
| Ring Material | PETP Plastic |
