Mfr. Part # IRD-35-NSOK-IBS Categories , ,

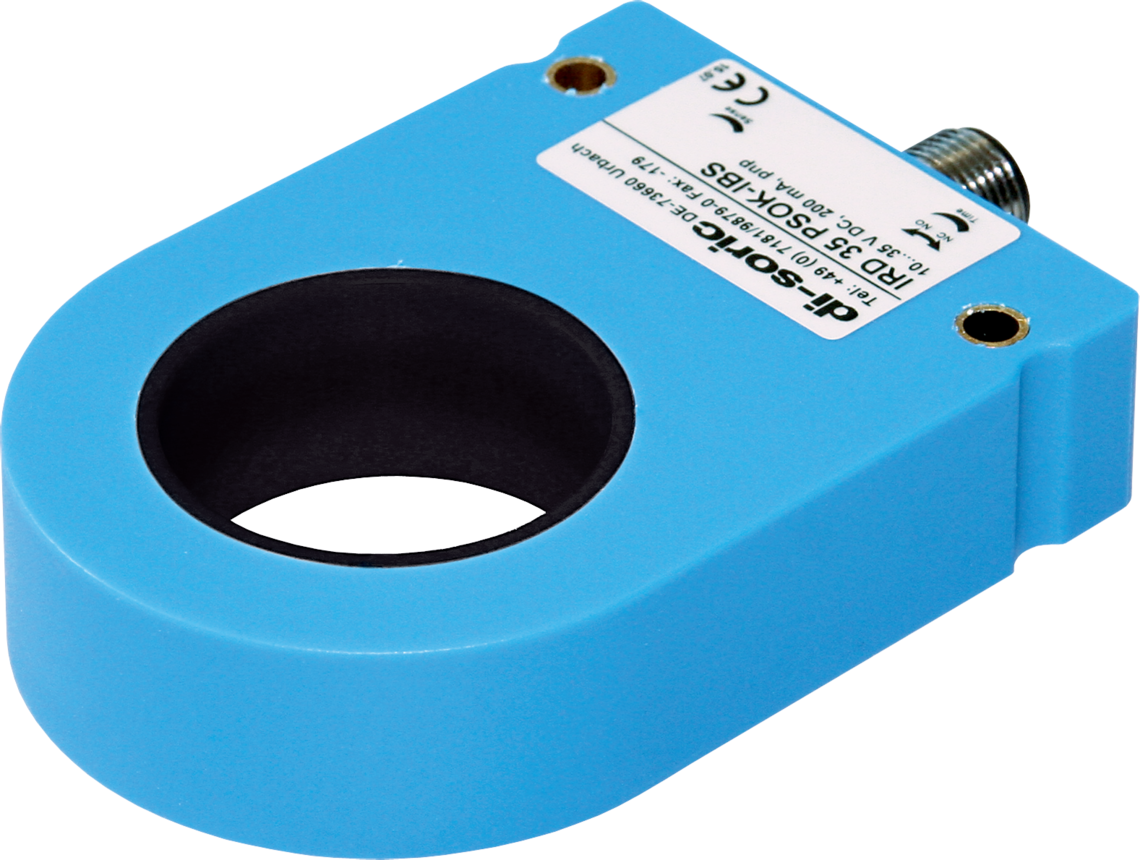

The di-soric IRD-35-NSOK-IBS is a 35.2 mm diameter, inductive ring sensor, dynamic switching, resolution of 2.0 mm, NPN-NO/NC output, M12, 4-pin connection

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship Immediately
Quantity Unit Price Ext. Price
1+ US$718.83 US$718.83+
Unit Cost : US$
Extended Cost : US$718.83
Add to Quote

Specifications

Product Type

Sensors

Brand

di-soric

Family

Inductive Ring Sensors

Part Number

IRD-35-NSOK-IBS

Resolution

2.0 mm

Housing Material

PA Plastic

Weight (g)

150

Switching Output

npn | NO/NC

Sensitivity Adjustment

Potentiometer

Connection

M12 | 4-pin

IP Rating

IP67

Operating Temperature Range

-25 to +70 °C

Ring Diameter

35.2 mm

Detection Principle

Dynamic

Ring Material

POM Plastic

Data Sheet

Overview

  • Full details coming soon
