Mfr. Part #
IRD-10-NSOK-IBS
Categories Inductive Ring Sensors, Ring and Tube Sensors, Sensors

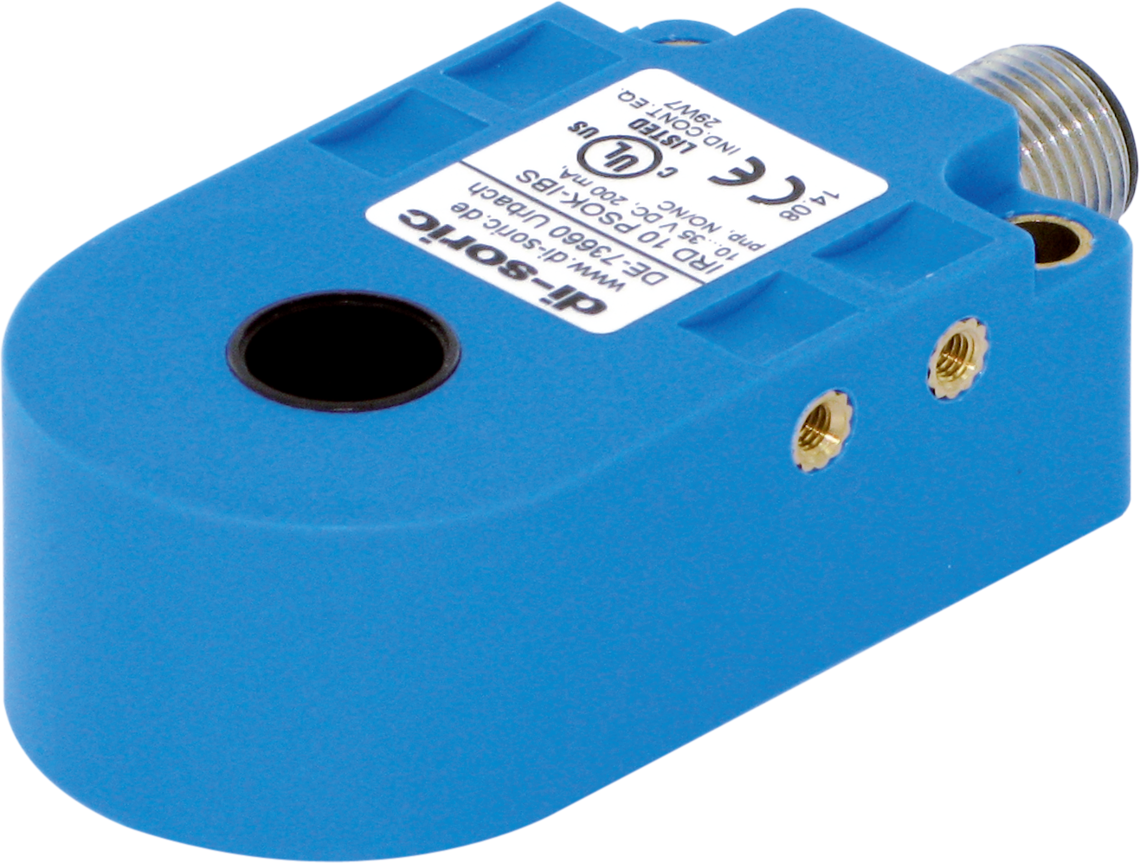

The di-soric IRD-10-NSOK-IBS is a 10.1 mm diameter, inductive ring sensor, dynamic switching, resolution of 0.6 mm, NPN-NO/NC output, M12, 4-pin connection
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can Ship Immediately
Specifications
Product Type | Sensors |
---|---|
Brand | di-soric |
Family | Inductive Ring Sensors |
Part Number | IRD-10-NSOK-IBS |
Resolution | 0.6 mm |
Housing Material | PA Plastic |
Weight (g) | 100 |
Switching Output | npn | NO/NC |
Sensitivity Adjustment | Potentiometer |
Connection | M12 | 4-pin |
IP Rating | IP67 |
Operating Temperature Range | -25 to +70 °C |
Ring Diameter | 10.1 mm |
Detection Principle | Dynamic |
Ring Material | POM Plastic |
Data Sheet
Overview
- Full details coming soon
