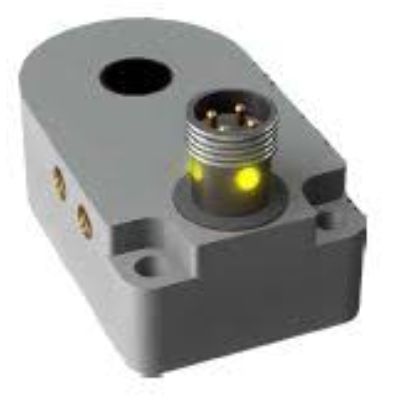

The Dietz KR-10-PSK-R-ST4 is a 10.1 mm capacitive ring sensor with a digital PNP / NO output. It’s ability to sense small changes in material dielectrics make it a leading sensor solution for liquid level detection in a plastic or glass tube that is placed within the sensor ring.
The capacitive ring sensor installs easily and comes with a right-angled M12 (3 wire) connector and built-in LED indicator.
In Stock: 0
Factory Lead-Time: Can Ship Immediately
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$222.02 | US$222.02+ |
Unit Cost : US$
Extended Cost : US$222.02
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Capacitive Ring Sensors |
| Part Number | KR-10-PSK-R-ST4 |
| Resolution | Adjustable |
| Housing Material | PA Plastic |
| Weight (g) | 100 |
| Switching Output | pnp | NO |
| Sensitivity Adjustment | Potentiometer |
| Connection | M12 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Ring Diameter | 10.1 mm |
| Detection Principle | Static |
| Ring Material | PBT Plastic |
Data Sheet
Overview
- Full details coming soon
Certifications
