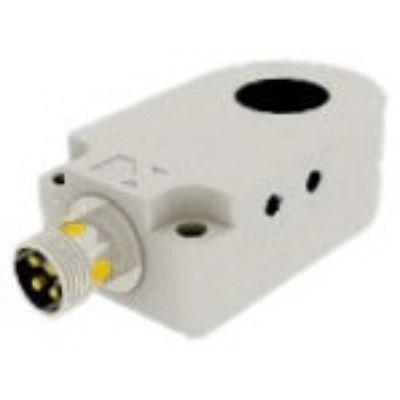

The Dietz KR-06-PSK-ST4 is a 6.1 mm diameter capacitive ring sensor with a digital PNP / NO output.
It’s able to sense small changes in material dielectrics make it a leading sensor solution for liquid level detection in a plastic or glass tube that is placed within the sensor ring.
The KR-06 capacitive ring sensor installs easily and features an M12 (3 wire) connector with built-in LED indicator.
Applications include: Detecting liquid levels in glass or plastic dispensing tubes, non-ferrous parts detection in a feeder tube, and any other sensing application were the delta (difference) between the dielectric materials of the feeder tube and target part/material is significant enough for detection.
1 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$225.23 | US$225.23+ |
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Capacitive Ring Sensors |
| Part Number | KR-06-PSK-ST4 |
| Resolution | Adjustable |
| Housing Material | PA Plastic |
| Weight (g) | 100 |
| Switching Output | pnp | NO |
| Sensitivity Adjustment | Potentiometer |
| Connection | M12 | 4-pin |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +70 °C |
| Ring Diameter | 6.1 mm |
| Detection Principle | Static |
| Ring Material | PBT Plastic |
Data Sheet
Applications
- detect ferrous parts flow in feeder tube
- detect non-ferrous parts flow in feeder tube
- non-contact liquid level detection in a plastic or glass tube
- dispensing material flow control in feeder tube
- jam up / blockage detection in feeder tube
