Mfr. Part #
LGTR-100-POK-ST4
Categories Light Curtains - Mini and Compact, Mini Light Curtains - Digital Output, Sensors

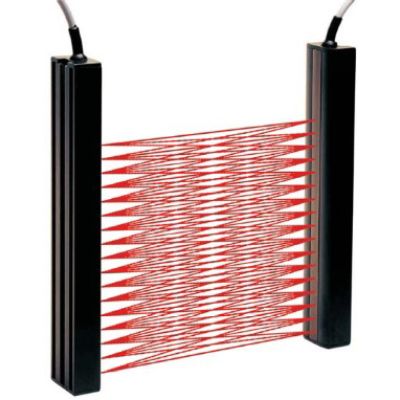

The Dietz LGTR-100-POK-ST4 is a 100 mm ( 4″) active height mini light curtain sensor with a digital PNP / NC output. It features 81 scanning beams with a resolution down to 6 mm.
The T-profile housing simplifies installation and alignment. Hook-up wiring is quick via the attached 1.5 metre (5 ft) cable and M12 (4 wire) connector. For position sensing use ONLY. Do not use as a safety sensor.
In Stock: 4
Factory Lead-Time: Can Ship Immediately
4 in stock
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$508.77 | US$508.77+ |
Unit Cost : US$
Extended Cost : US$508.77
Specifications
Product Type | Sensors |
---|---|
Brand | Dietz |
Family | Mini Light Curtains – Digital Output |
Part Number | LGTR-100-POK-ST4 |
Light Source | Infrared LED Light |
Resolution | 6.0 mm |
Housing Material | Aluminum | Black |
Weight (g) | 500 |
Switching Output | PNP NC |
Sensitivity Adjustment | Potentiometer |
Connection | Cable with M12 |
IP Rating | IP51 |
Operating Temperature Range | -10 to +50 °C |
Active Zone Height | 100 mm |
Active Zone Range | 0.2 m to 8.0 m |
Data Sheet
Overview
- Full details coming soon
