Mfr. Part #
LGTR-300-PSK-ST4
Categories Compact Light Curtains - Digital Output, Light Curtains - Mini and Compact, Sensors

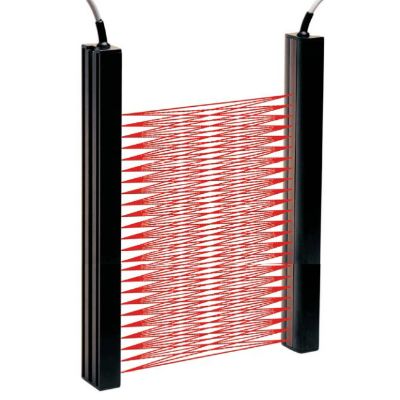

The Dietz LGTR-300-PSK-ST4 is a 300 mm ( 12″) active height compact light curtain sensor with a digital PNP / NO output. It features 220 scanning beams with a resolution down to 8 mm.
The T-profile housing simplifies installation and alignment. Hook-up wiring is quick via the attached 1.5 metre (5 ft) cable and M12 (4 wire) connector. For position sensing use ONLY. Do not use as a safety sensor.
In Stock: 0
Factory Lead-Time: Can Ship Immediately
Quantity | Unit Price | Ext. Price |
---|---|---|
1+ | US$639.86 | US$639.86+ |
Unit Cost : US$
Extended Cost : US$639.86
Specifications
Product Type | Sensors |
---|---|
Brand | Dietz |
Family | Compact Light Curtains – Digital Output |
Part Number | LGTR-300-PSK-ST4 |
Light Source | Infrared LED Light |
Resolution | 8.0 mm |
Housing Material | Aluminum | Black |
Weight (g) | 1000 |
Switching Output | PNP NO |
Sensitivity Adjustment | Potentiometer |
Connection | Cable with M12 |
IP Rating | IP51 |
Operating Temperature Range | -10 to +50 °C |
Active Zone Height | 300 mm |
Active Zone Range | 0.2 m to 7.5 m |
Data Sheet
Overview
- Full details coming soon
