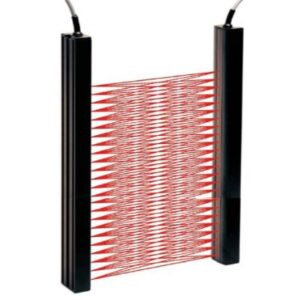

The Dietz LGTR-300-POK-ST4 is a 300 mm ( 12″) active height compact light curtain sensor with a digital PNP / NC output. It features 220 scanning beams with a resolution down to 8 mm.
The T-profile housing simplifies installation and alignment. Hook-up wiring is quick via the attached 1.5 metre (5 ft) cable and M12 (4 wire) connector. For position sensing use ONLY. Do not use as a safety sensor.
In Stock: 0
Factory Lead-Time: Can Ship Immediately
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$639.86 | US$639.86+ |
Unit Cost : US$
Extended Cost : US$639.86
Specifications
| Product Type | Sensors |
|---|---|
| Brand | Dietz |
| Family | Compact Light Curtains – Digital Output |
| Part Number | LGTR-300-POK-ST4 |
| Light Source | Infrared LED Light |
| Resolution | 8.0 mm |
| Housing Material | Aluminum | Black |
| Weight (g) | 1000 |
| Switching Output | PNP NC |
| Sensitivity Adjustment | Potentiometer |
| Connection | Cable with M12 |
| IP Rating | IP51 |
| Operating Temperature Range | -10 to +50 °C |
| Active Zone Height | 300 mm |
| Active Zone Range | 0.2 m to 7.5 m |
Data Sheet
Overview
- Full details coming soon
Certifications
