0233.232.023 / 10233232023 ROHRflex® PA6 22.0 x28.5 mm black coarse corrugated nylon conduit for railway and general purpose applications

Product Name:
0233.232.023 / 10233232023 ROHRflex® PA6 22.0 x28.5 mm black coarse corrugated nylon conduit for railway and general purpose applications

Flexa Logo
Mfr. Part # 10233232023 Categories , , ,

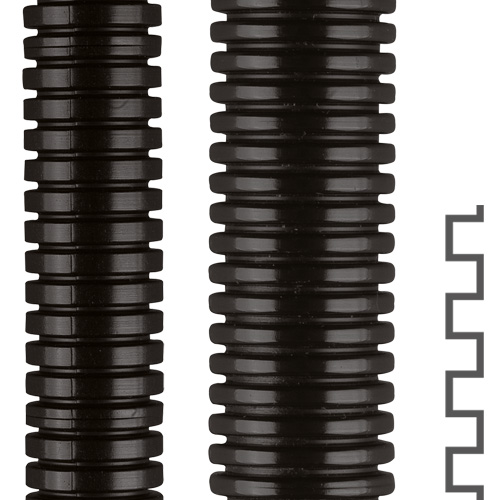

The Flexa ROHRflex PA6 10233232023 (Old Part Number 0233.232.023) is a 22.0 x 28.5 mm coarse (wide) corrugation conduit made from a special blend of Black PA6 nylon plastic.

Applications for corrugated PA6 conduits: This versatile, multi-purpose conduit boasts numerous industry approvals, making it suitable for a wide range of applications, including machine building, robotics, cobot implementation, and factory wiring.

With a top-tier fire protection rating of HL3, it is an excellent choice for wiring solutions in public transportation vehicles such as passenger rail-cars, buses, EV transportation, and locomotives. It is suitable for both indoor and outdoor installations, meeting V0 (UL 94) and EN 45545-2 (HL3) standards.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$494.98 US$494.98
2 US$470.23 US$940.46
5 US$445.48 US$2,227.41
10+ US$420.73 US$4,207.33+
Unit Cost : US$
Extended Cost : US$494.98
Add to Quote

Specifications

Package Size

50m (164 ft) per roll
Product Type

Plastic Conduit
Brand

Flexa
Family

ROHRflex PA6
Part Number

10233232023
Part Number (Old)

0233.232.023
Colour

Black
OD Outside Diameter (mm)

28.5
ID Inside Diameter (mm)

22
Corrugation Profile

Coarse
Static Bend Radius (mm)

55
Dynamic Bend Radius (mm)

100
Weight (kg|m)

0.09
Material

PA6 Plastic
IP Rating

IP68
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Extended Temperature (°C)

150
Flammability Rating (UL 94)

VO
Customs Tariff Number

3917.32.0050
Country of Origin

Germany
GTIN / EAN Code

4025113190222

Data Sheet

Properties

  • air- and liquid-tight
  • oil resistant up to + 80° C
  • benzine resistant
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • self-extinguishing
  • flame retardant
  • UV-resistant

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
