0238.202.023 / 10238202023 ROHRflex PA6-UL-SD 22.5 x 28.5 mm black corrugated nylon conduit UL/CSA rated for HVAC applications

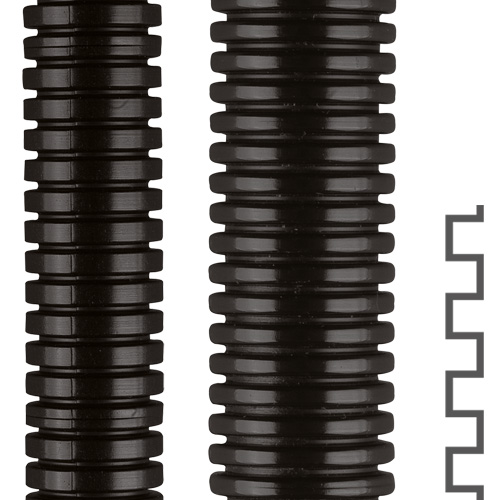

The Flexa ROHRflex PA6-UL-SD 10238202023, old part number 0238.202.023, is a 22.5 x 28.5 mm black fine-corrugated nylon conduit made from specially blended PA6 plastic and supplied as a 50 m roll. This conduit is designed for wire and cable protection in HVAC, building services, mechanical equipment, and approved conduit system applications.
ROHRflex PA6-UL-SD is based on the PA6-S conduit family and is intended for applications where specific UL/CSA approval requirements are needed. It provides good cold-temperature flexibility, heavy-duty wall strength, flame-retardant performance, and halogen-free construction for indoor and outdoor installations.
For secure conduit termination, pair this conduit with compatible FLEXAquick® quick-connect fittings sized for 28.5 mm conduit OD. No tools are required for quick conduit connection or disconnection when used with compatible FLEXAquick® fittings.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$543.11 | US$543.11 |
| 2 | US$515.95 | US$1,031.91 |
| 5 | US$488.80 | US$2,444.00 |
| 10+ | US$461.64 | US$4,616.44+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PA6-UL-SD |
| Part Number | 10238202023 |
| Part Number (Old) | 0238.202.023 |
| Colour | Black |
| OD Outside Diameter (mm) | 28.5 |
| ID Inside Diameter (mm) | 22.5 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 60 |
| Dynamic Bend Radius (mm) | 100 |
| Weight (kg|m) | 0.12 |
| Material | PA6 Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 120 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113302410 |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Heating, Ventilation and Air Conditioning
- Outdoor Applications
Certifications
