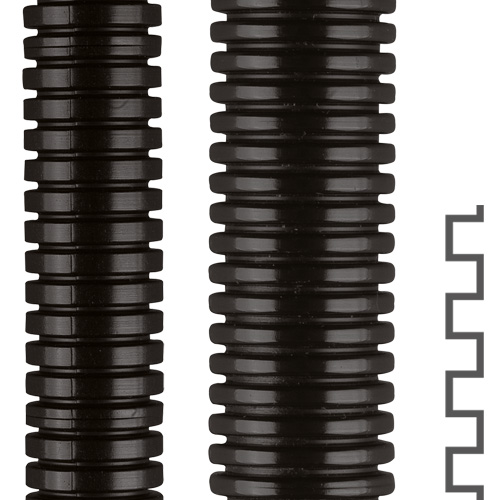

The Flexa ROHRflex PA6-LL 10267202048 (Old Part Number 0267.202.048) is a 48.0 x 54.5 mm protective black PA6 all-plastic tubing, internally and externally corrugated, fine profile, reduced fire protection properties, economical. Designed for special projects and OEM applications where only a very basic conduit is required, HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$336.88 | US$336.88 |
| 2 | US$320.04 | US$640.07 |
| 5 | US$303.19 | US$1,515.96 |
| 10+ | US$286.35 | US$2,863.48+ |
Unit Cost : US$
Extended Cost : US$336.88
Specifications
| Product Type | Plastic Conduit |
|---|---|
| Brand | Flexa |
| Family | ROHRflex PA6-LL |
| Part Number | 10267202048 |
| Part Number (Old) | 0267.202.048 |
| Colour | Black |
| OD Outside Diameter (mm) | 54.5 |
| ID Inside Diameter (mm) | 48 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 100 |
| Dynamic Bend Radius (mm) | 190 |
| Weight (kg|m) | 0.165 |
| Package Size | 25m Per Roll |
| Material | PA6 Modified Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 120 |
| Flammability Rating (UL 94) | HB |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
