Flexa ROHRflex PA6-LL 0267.202.023 / 10267202023

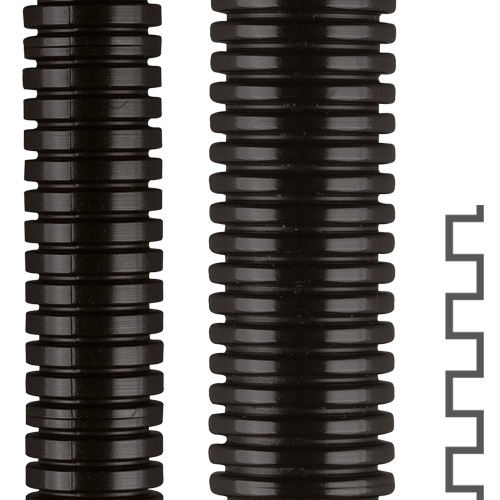

The Flexa ROHRflex PA6-LL 10267202023 (Old Part Number 0267.202.023) is a 22.0 x 28.5 mm protective black PA6 all-plastic tubing, internally and externally corrugated, fine profile, reduced fire protection properties, economical. Designed for special projects and OEM applications where only a very basic conduit is required, HB (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$306.72 | US$306.72 |
| 2 | US$291.38 | US$582.77 |
| 5 | US$276.05 | US$1,380.24 |
| 10+ | US$260.71 | US$2,607.12+ |
Unit Cost : US$
Extended Cost : US$306.72
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PA6-LL |
| Part Number | 10267202023 |
| Part Number (Old) | 0267.202.023 |
| Colour | Black |
| OD Outside Diameter (mm) | 28.5 |
| ID Inside Diameter (mm) | 22 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 55 |
| Dynamic Bend Radius (mm) | 100 |
| Weight (kg|m) | 0.07 |
| Material | PA6 Modified Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 120 |
| Flammability Rating (UL 94) | HB |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113260925 |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
