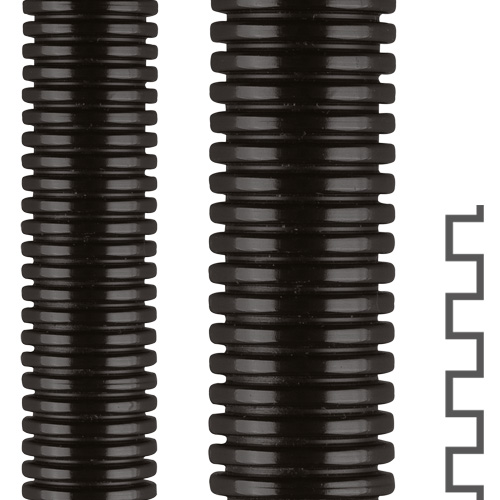

0254.202.006 / 10254202006 Flexa ROHRflex PA6-HT 6.7 x 10.0 mm high temperature black fine corrugated nylon conduit
The Flexa ROHRflex PA6-HT 10254202006 (Old Part Number 0254.202.006) is a 6.7 x 10.0 mm Black PA6 plastic high temperature rated conduit.
The proprietary blend of plastic extends the conduit application temperature range to 150°C continuous and 170°C short term.
Good for conduit installations that need a little more temperature protection such as packaging, labelling, and sealing machinery, V2 (UL 94).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$164.82 | US$164.82 |
| 2 | US$156.58 | US$313.16 |
| 5 | US$148.34 | US$741.69 |
| 10+ | US$140.10 | US$1,400.97+ |
Unit Cost : US$
Extended Cost : US$164.82
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Plastic Conduit |
| Brand | Flexa |
| Family | ROHRflex PA6-HT |
| Part Number | 10254202006 |
| Part Number (Old) | 0254.202.006 |
| Colour | Black |
| OD Outside Diameter (mm) | 10 |
| ID Inside Diameter (mm) | 6.7 |
| Corrugation Profile | Fine |
| Static Bend Radius (mm) | 13 |
| Dynamic Bend Radius (mm) | 35 |
| Weight (kg|m) | 0.02 |
| Material | PA6 Plastic |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 150 |
| Extended Temperature (°C) | 170 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 3917.32.0050 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113275516 |
Data Sheet
Properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- UV-resistant
Applications
- Machine and Plant Constructions
- Automotive
- Electrical Installations
Certifications
