Mfr. Part #
10249232023
Categories Corrugated Nylon, IBIS ROHRflex Corrugated Nylon Plastic Conduit 50 Roll, Plastic Conduits, ROHRflex PA12-F

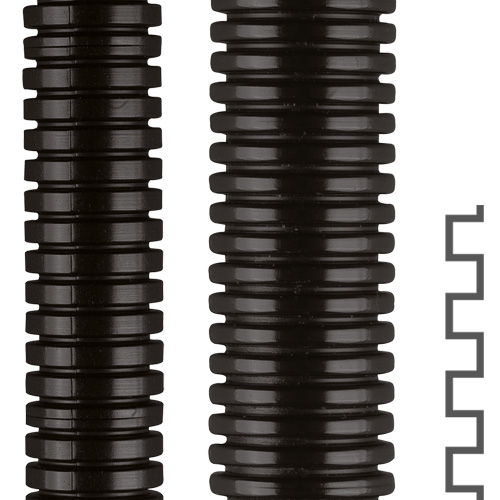

The Flexa ROHRflex PA12-F 10249232023 (Old Part Number 0249.232.023) is a 22.0 x 28.5 mm specially blended black PA12 plastic conduit, with a coarse corrugation profile. It combines excellent cold temperature flexibility with the best fire protection rating of HL3 making it a top choice for passenger railcar, bus, and locomotive wiring solutions. Good for indoor or outdoor installations, V2 (UL 94), EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3 weeks
Minimum: 1
Multiples: 1
Quantity | Unit Price | Ext. Price |
---|---|---|
1 | US$897.01 | US$897.01 |
2 | US$852.16 | US$1,704.32 |
5 | US$807.31 | US$4,036.55 |
10+ | US$762.46 | US$7,624.59+ |
Unit Cost : US$
Extended Cost : US$897.01
Specifications
Product Type | Plastic Conduit |
---|---|
Brand | Flexa |
Family | ROHRflex PA12-F |
Part Number | 10249232023 |
Part Number (Old) | 0249.232.023 |
Colour | Black |
OD Outside Diameter (mm) | 28.5 |
ID Inside Diameter (mm) | 22 |
Corrugation Profile | Coarse |
Static Bend Radius (mm) | 55 |
Dynamic Bend Radius (mm) | 100 |
Weight (kg|m) | 0.11 |
Package Size | 50m Per Roll |
Material | PA12 Plastic |
IP Rating | IP68 |
Low Temperature Rating (°C) | -50 |
High Temperature Rating (°C) | 100 |
Extended Temperature (°C) | 130 |
Flammability Rating (UL 94) | V2 |
Data Sheet
Properties
- high alternate bending strength
- improved insulation properties
- air- and liquid-tight
- oil resistant up to + 80° C
- benzine resistant
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- self-extinguishing
- flame retardant
- UV-resistant
- EN 45545-2 HL3 for R22
- R23
Applications
- Automotive
- Railway Industry
- Electrical Installations
- Robotics and High Motion Machinery
