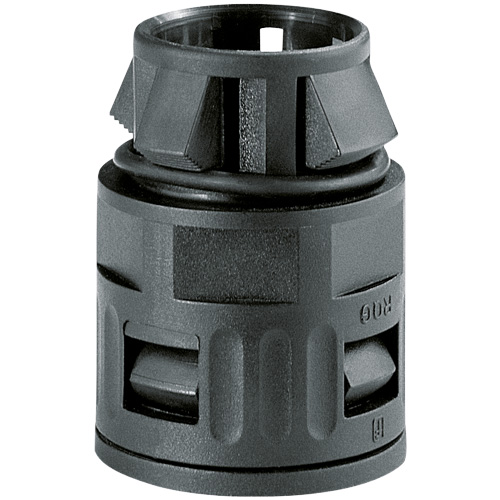

5020.382.225 / 15020382225 RQG1-S 25.0 mm knockout threadless “push-lock” FLEXAquick Black straight connector for 28.5 mm OD conduit
The Flexa RQG1-S 15020382225 (Old Part Number 5020.382.225) is a straight Black plastic conduit connector with a unique “push-lock” threadless installation. Use with 25.0 mm knockout holes.
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP66 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!
Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$10.43 | US$10.43 |
| 5 | US$10.12 | US$50.59 |
| 10 | US$9.91 | US$99.09 |
| 15 | US$9.39 | US$140.81 |
| 20 | US$8.87 | US$177.31 |
| 25 | US$8.34 | US$208.60 |
| 50 | US$7.82 | US$391.13 |
| 100 | US$7.30 | US$730.10 |
| 250+ | US$6.78 | US$1,694.88+ |
Unit Cost : US$
Extended Cost : US$10.43
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG1-S |
| Part Number | 15020382225 |
| Part Number (Old) | 5020.382.225 |
| Colour | Black |
| Thread Length C (mm) | 17.5 |
| Body Length D (mm) | 51 |
| Material | PA 6 Plastic |
| OD Outside Diameter (mm) | 28.5 |
| ΦI Inside Diameter (mm) | 21 |
| ΦB Max Outer Diameter (mm) | 37 |
| Weight (kg|100) | 1.9 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Knockout Hole Size (mm) | 25 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113216663 |
Data Sheet
Properties
- installs in confined locations
- no locknut needed and easily installs from one side of a panel
- good for panel wall thicknesses ranging from 1.0 to 2.5 mm
- self-extinguishing
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
Certifications
