Flexa RQG1-S 5020.382.016 / 15020382016

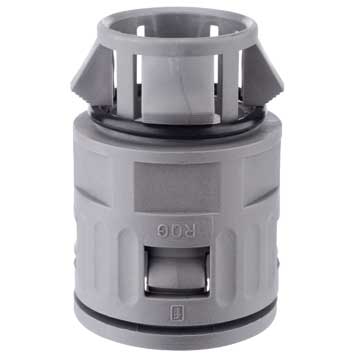

The Flexa RQG1-S 15020382016 (Old Part Number 5020.382.016) is described as a straight plastic conduit connector with a unique threadless, panel mount knockout hole style installation combined with an integrated cable strain relief. On the conduit end, it features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | CAD$5.89 | CAD$5.89 |
| 5 | CAD$5.71 | CAD$28.57 |
| 10 | CAD$5.60 | CAD$55.96 |
| 15 | CAD$5.30 | CAD$79.52 |
| 25 | CAD$5.01 | CAD$125.16 |
| 50 | CAD$4.71 | CAD$235.60 |
| 100 | CAD$4.42 | CAD$441.75 |
| 250 | CAD$4.12 | CAD$1,030.75 |
| 500+ | CAD$3.83 | CAD$1,914.25+ |
Unit Cost : CAD$
Extended Cost : CAD$5.89
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG1-S |
| Part Number | 15020382016 |
| Part Number (Old) | 5020.382.016 |
| Colour | Grey |
| Thread Length C (mm) | 13.5 |
| Body Length D (mm) | 40.5 |
| Material | PA 6 Plastic |
| OD Outside Diameter (mm) | 15.8 |
| ΦI Inside Diameter (mm) | 11.8 |
| ΦB Max Outer Diameter (mm) | 23 |
| Weight (kg|100) | 0.7 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Knockout Hole Size (mm) | 16 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113269867 |
Data Sheet
Properties
- installs in confined locations
- no locknut needed and easily installs from one side of a panel
- good for panel wall thicknesses ranging from 1.0 to 2.5 mm
- self-extinguishing
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
Applications
- Machine and Plant Constructions
- Automation
- Electrical Installations
Certifications
